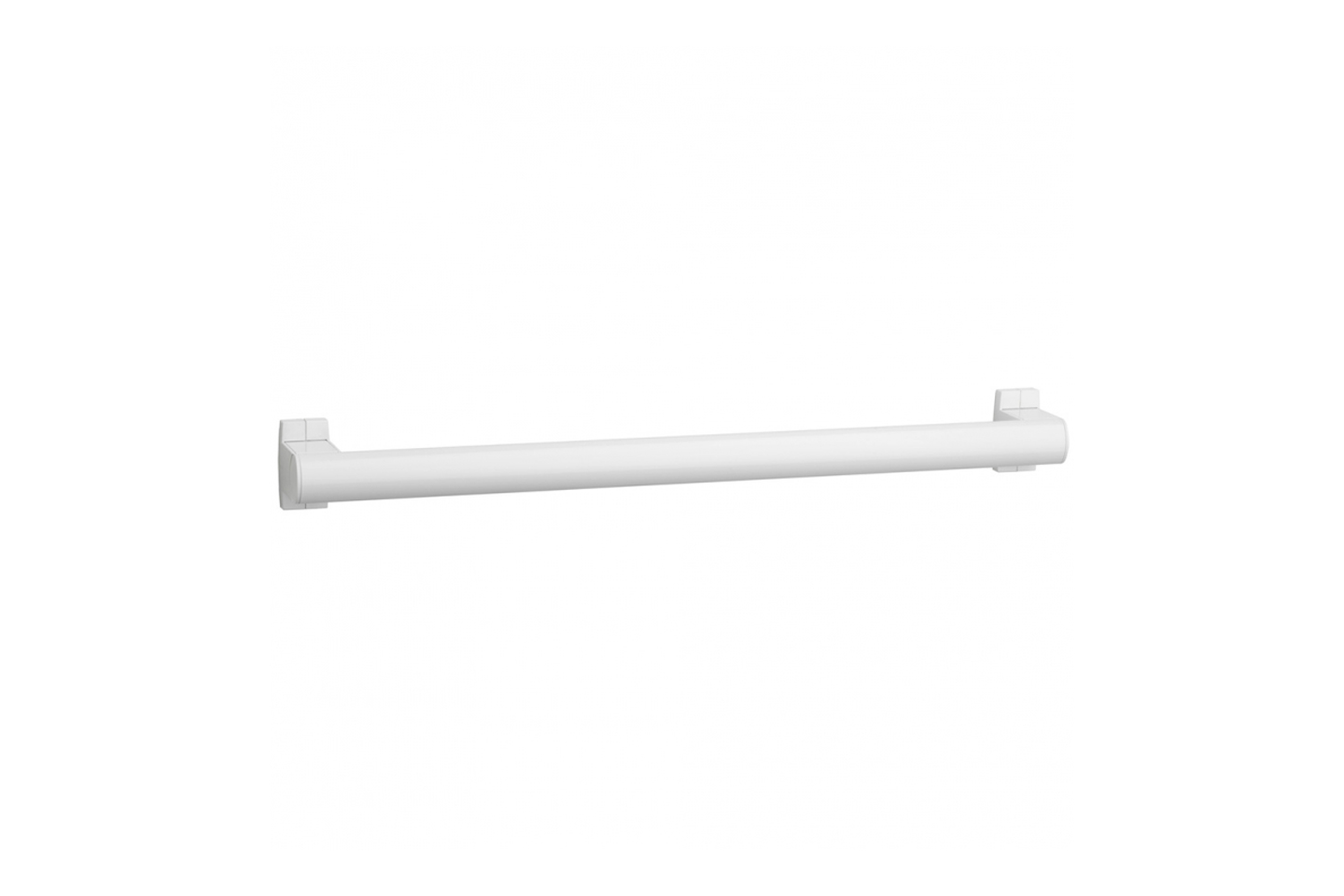

ARSIS straight grab bar, 500 mm, White Epoxy-coated Aluminium

Part Ref: 049850


Asset 1

Description

Product advantages

  • Elliptic tube for an improved grip.
  • Elegant and design shape.
  • Corrosion resistant warranty.
  • Elliptical tube in white epoxy-coated aluminium 38 x 25 mm.
  • White resin cover plates.
  • Wall fixings included.
  • Design coordinated with all ARSIS Comfort items.
  • Perfectly suitable for use in the hospitality industry.


Downloads

File File size
pdf fiche_technique_049850 mp brand 624 KB

Technical Details

Material Aluminium
Finish Epoxy-coated
Color White

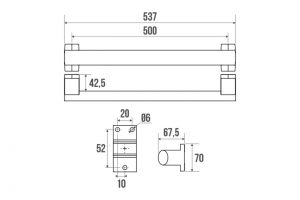

Dimensions 500 mm
Diameter Ø 38 x 25 mm
Gross weight 0.580 kg
Net weight 0.485 kg
Packaging Plastic protection bag + Hanger for display
CE Marking : safe load 150 kg
Laboratory tests 225 kg
Guarantee 10 years
Gencod 3563390498507
Custom code 7615200000



Recommended height for the horizontal part : 800 mm from the ground. Grab bars provide support and added safety if properly fitted in accordance with our technical instructions. Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.



IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning.

CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
