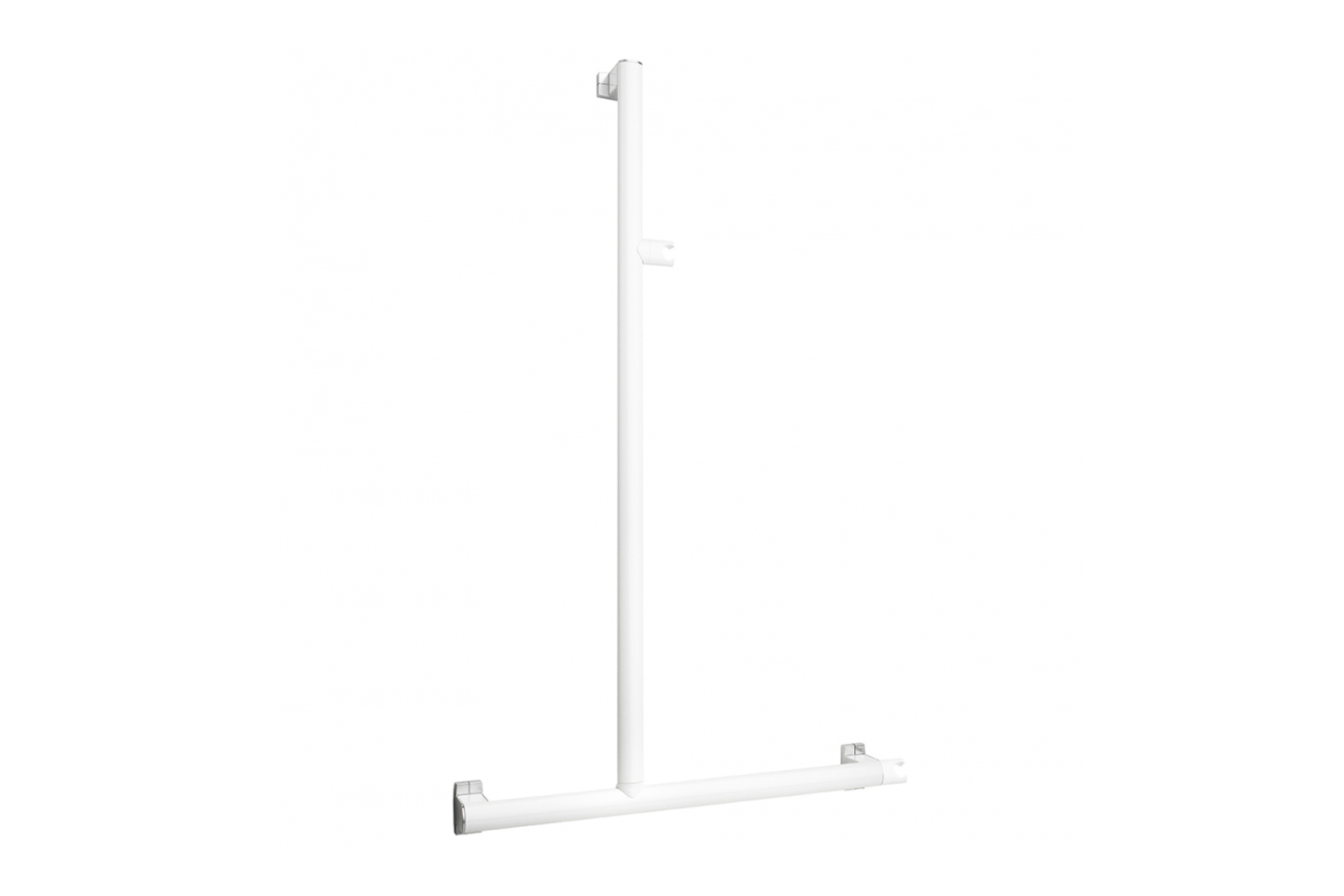

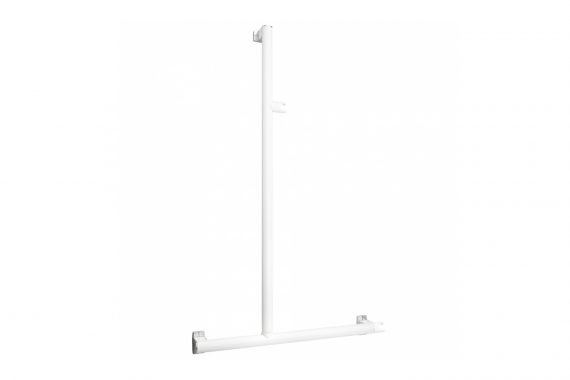

ARSIS T-or L-shaped shower bar, White Epoxy-coated Aluminium, mat chrome-plated flanges

Part Ref: 049920


Asset 1

Description

Product advantages

  • Adjustable: convertible into a T or L shape, for all configurations.
  • Elliptic tube for an improved grip.
  • Help to get up and stand.
  • With 2 brackets for shower handset : sliding and fixed rotating.
  • Adjustable: convertible into T or L shape at assemly stage. Once assembled, the positioning remains fixed: 3 fixing points.
  • With shower rail slider bracket: 1 slider bracket on the vertical bar to ease the catch in hand of the shower handset. 1 fixed and rotating bracket on the horizontal bar to enable people while sitting to have a shower without any difficulty.
  • Elliptical tube in white epoxy-coated aluminium.
  • Mat chrome-plated resin cover plates.
  • Wall fixings included.
  • Design coordinated with all ARSIS Comfort items.
  • Perfectly suitable for use in the hospitality industry.




Downloads

File File size
pdf fiche_technique_049920 mp brand 624 KB

Technical Details

Material Aluminium
Finish Epoxy-coated
Color Mat chrome-plated & white
Dimensions 1296 x 637 mm
Diameter Ø 38 x 25 mm
Gross weight 2.020 kg
Net weight 1.500 kg
Packaging Cardboard box + label
CE Marking : safe load 150 kg
Laboratory tests 225 kg
Guarantee 10 years
Gencod 3563390499207
Custom code 7615200000
Spare Parts Réf. 049007 : Support de fixation alu chromé, Réf. 049009 : Cache-fixation gris chromé mat



Recommended height for the horizontal part : 800 mm from the ground. Grab bars provide support and added safety if properly fitted in accordance with our technical instructions. Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.



IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning.

CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
