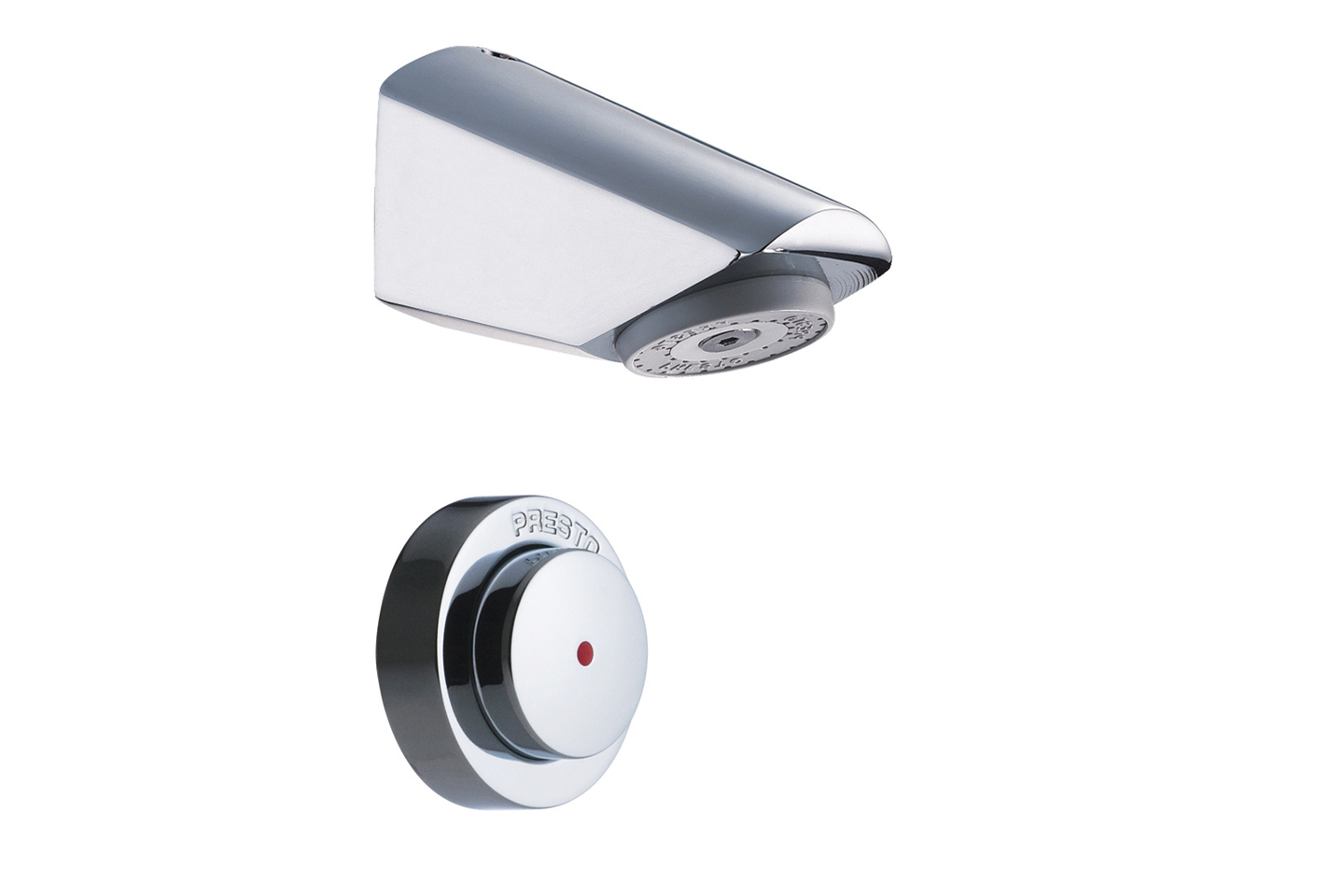

PRESTO COMPLETE READY-TO-INSTALL KIT CROSS PARTITION CONTROL, Ref. 38231  |  With PRESTO 50 – For 200 to 300 mm partition

Part Ref: 38213


The complete ready-to-install kit provides water flow by simple pressure on the push button.

It includes a self-closing tap, a cross partition control and a shower head. It is suitable for all partitions from 1 to 300 mm thick

ADVANTAGES

  • Completely vandal-proof
  • Non-turnable, non-removable control button
  • Adjustable flush volume
  • Patented mechanism guaranteeing constant timed flow
Categories: ,
Manufacturer:

Asset 1

Technical Details

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 6 l/min with built-in flow limiter – Flow regulation using a threaded ring – Anti water-hammer system

Flow time:

  • 30 seconds (-10/+5 seconds)

Hydraulic supply:

  • Male G 3/4″ (20×27) cold water or pre-mixed

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Delivered with:

  • 1 Cross partition control for 200 to 300 mm partition – 1 PRESTO 50 NF/II shower tap – 1 Fixed shower head with directional 17° or 25° grid – 1 flat gasket – 1 filter gasket – 2 3/4″ (20×27) connector nuts for 14×16 mm tube

Standards / Approvals:

  • Brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
