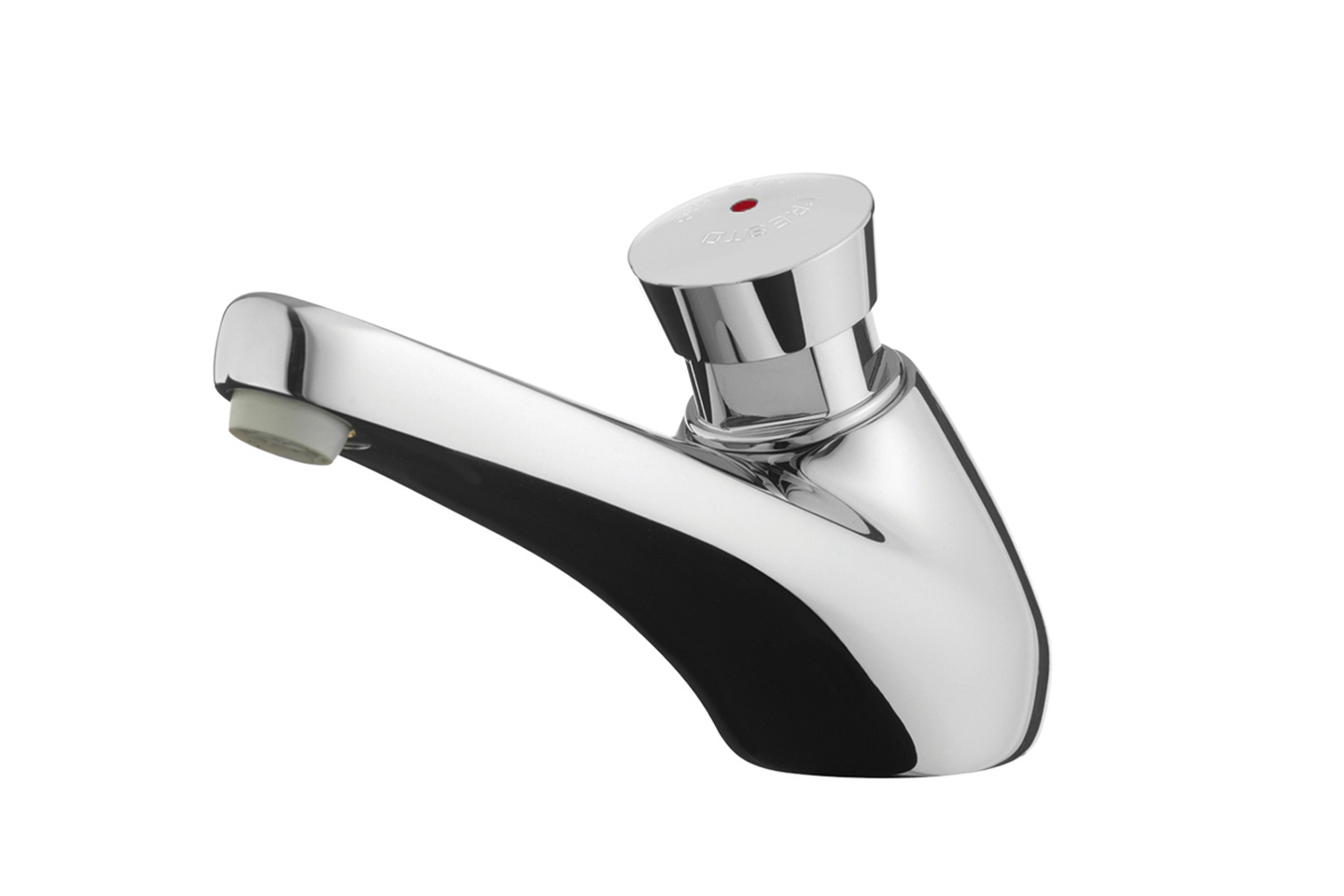

PRESTO 605 DECK-MOUNTED SINGLE TAP PRESTO 600, Ref. 64622  |  Hot water

Part Ref: 64622


Single deck-mounted washbasin tap turns the water on by simply pressing the push button The water stops running automatically after a factory-set period. With 4-position flow regulation.

ADVANTAGES

  • Patented mechanism guaranteeing constant timed flow
  • 4-position flow adjustment inaccessible to users
  • Designed to withstand severe usage conditions: non-turnable button, non-removable, wear-proof colour marker
  • Easier maintenance: easy-to-replace interchangeable head
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function:

  • This PRESTO® 605 deck-mounted washbasin tap closes automatically thanks to a fixed 15 second timer.

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 3 l/min at 3 bars – 4-position setting – Anti water-hammer system

Flow time:

  • 15 seconds ± 5 seconds

Hydraulic supply:

  • Male G 1/2″ (15×21) cold water or pre-mixed

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C

Safety:

  • Non-turnable push button to avoid premature wear – Non-removable and wear-proof red marker

Delivered with:

  • 1 Nut for 12×14 copper tube – 1 Fibre gasket – 1 Stainless steel plain washer – 1 Brass clamping nut – 1 Nitrile plain washer

Standards / Approvals:

  • Acoustic class II – Chrome plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 922
