64612

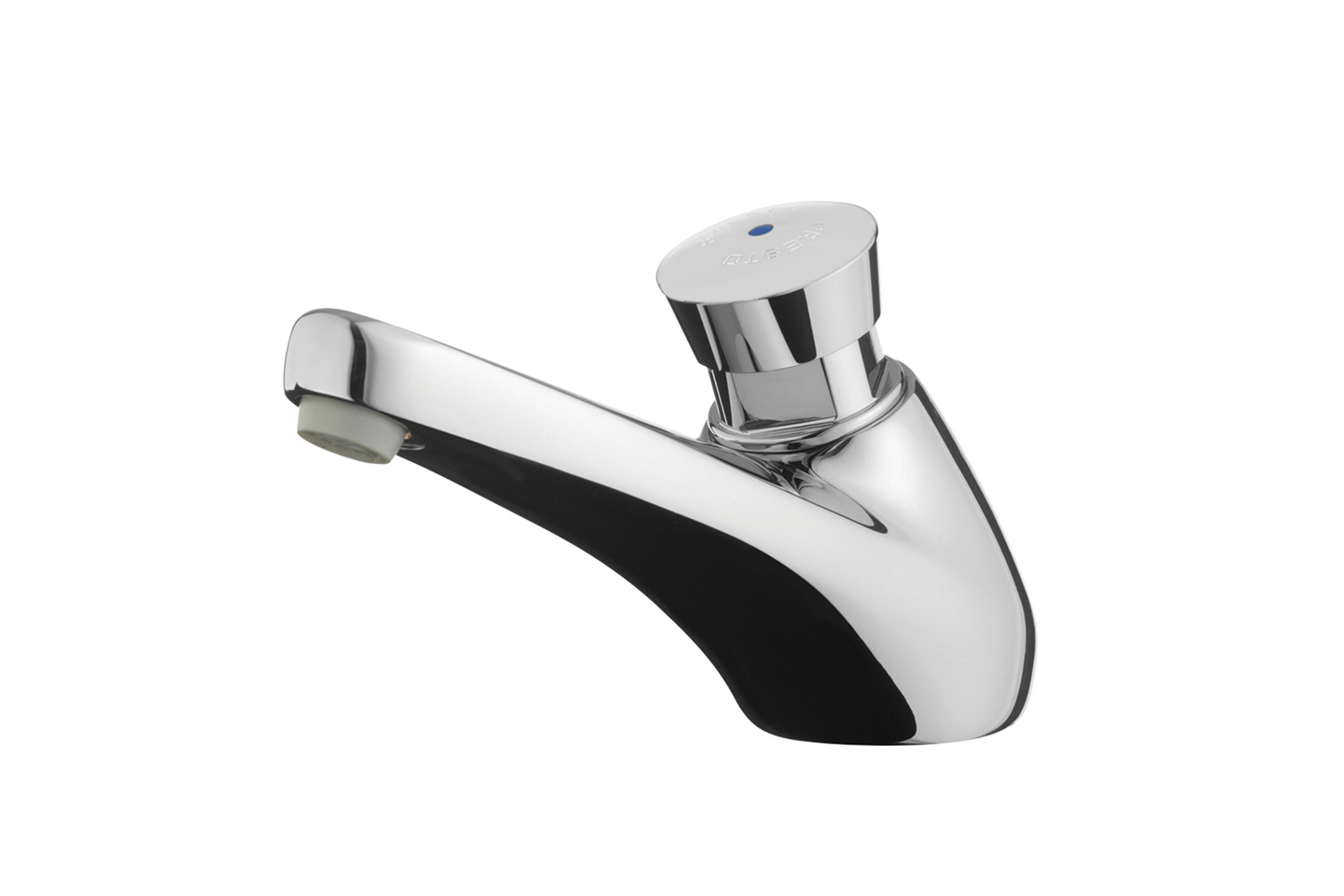

PRESTO 605 S® SINGLE DECK-MOUNTED TAP PRESTO 600, Ref. 64612 | Cold water

Part Ref: 64612

Single deck-mounted washbasin tap turns the water on by simply pressing the push button The water stops running automatically after a factory-set period. With anti-blocking system. With 4-position flow regulation.

ADVANTAGES

Patented mechanism guaranteeing constant timed flow
4-position flow adjustment inaccessible to users
Designed to withstand severe usage conditions: non-turnable button, non-removable, wear-proof colour marker
Easier maintenance: easy-to-replace interchangeable head

Category: Commercial
Manufacturer: Presto

Add to my Product List

Technical Details

Technical Details

Function:

This deck-mounted PRESTO 605 S washbasin tap (cold water) is self-closing thanks to a fixed 15 second timer complemented by an S safety system preventing it being blocked for continuous flow.

Recommended working pressure:

1 to 5 bars

Flow:

3 l/min at 3 bars – 4-position setting – Anti water-hammer system

Flow time:

15 seconds ± 5 seconds

Hydraulic supply:

Male G 1/2″ (15×21) cold water

Thermal resistance:

This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Safety:

S® system to prevent blocking in continuous flow – Non-turnable push button to avoid premature wear – Non-removable and wear-proof blue marker

Delivered with:

1 Nut for 12×14 copper tube – 1 Fibre gasket – 1 Stainless steel plain washer – 1 Brass clamping nut – 1 Nitrile plain washer

Standards / Approvals:

Chrome plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
