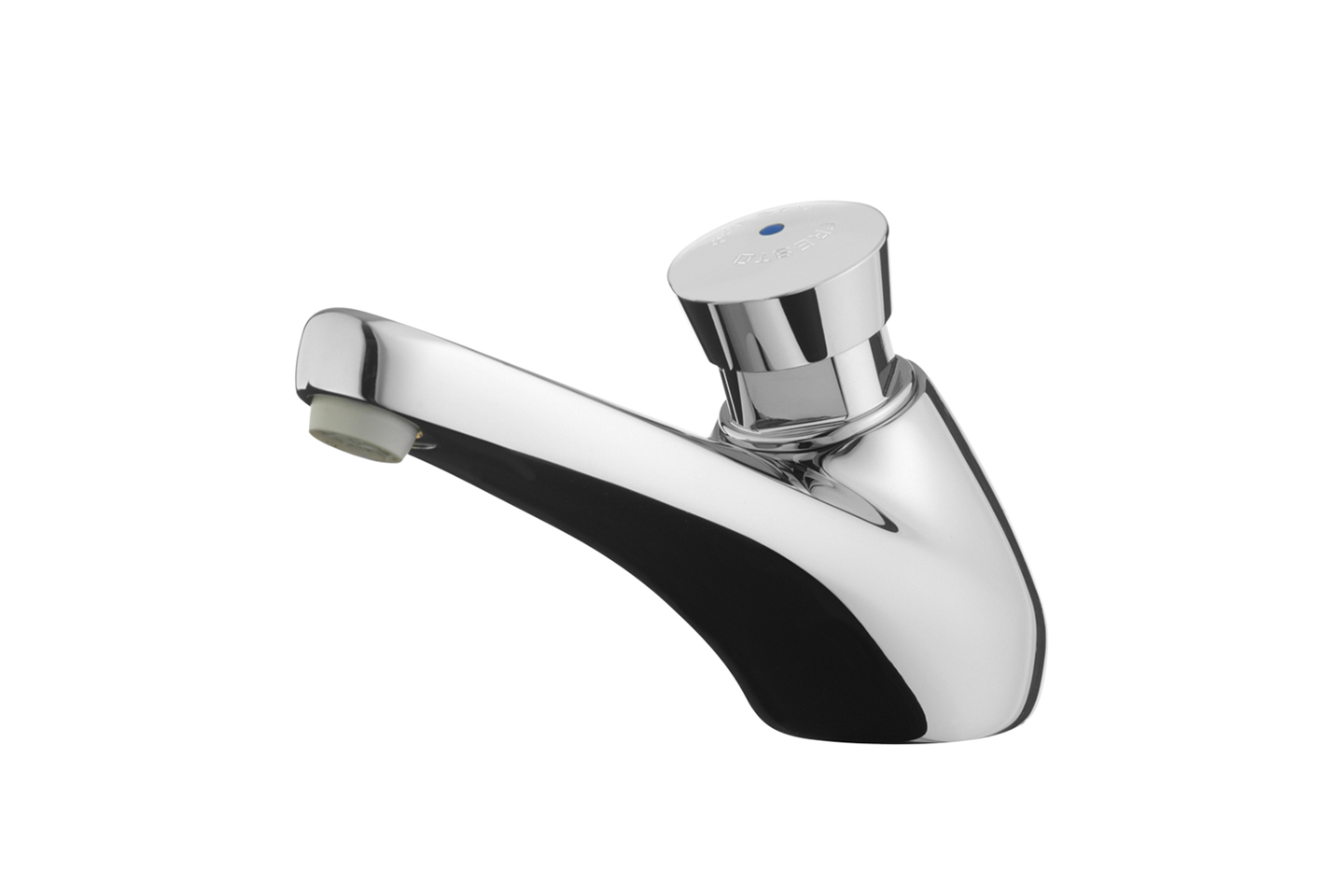

PRESTO 605 S® Single Deck-Mounted Tap

Part Ref: 64613


Single deck-mounted washbasin tap turns the water on by simply pressing the push button The water stops running automatically after a factory-set period. With anti-blocking system. With 4-position flow regulation.

ADVANTAGES

  • Patented mechanism guaranteeing constant timed flow
  • 4-position flow adjustment inaccessible to users
  • Designed to withstand severe usage conditions: non-turnable button, non-removable, wear-proof colour marker
  • Easier maintenance: easy-to-replace interchangeable head

Asset 1

Technical Details

Working pressure :

  • 1 to 5 bar

Flow :

  • 3 l/min at 3 bar – 4-position flow adjustment device
  • Anti-water-hammering design
  • Vandalism proof and anti-clogging spout

Flow time :

  • 7 seconds

Hydraulic supply :

  • M G 1/2″ (15×21) – Premixed water

Thermal resistance :

  • Resistant to a temperature of 75°C for 30-minute-thermal-shocks

Security :

  • Non-turnable push button
  • Non-removable, wear-proof blue marker
  • Patented anti-blocking “S” system to avoid the water to flow continuously

Delivered with :

  • 1 Nut for 12×14 tube
  • 1 Filter gasket
  • 1 Stainless steel plain washer
  • 1 Brass clamping nut
  • 1 Nitrile plain washer
  • Instruction manual

Standards & approvals :

  • Acoustic class II
  • Brass body in accordance with EN 1982, EN 12164, EN 12165
  • Molded chrome-plated body in accordance with EN 12540
  • 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
