Technical Details
Function:
- The modular solution perfectly integrates all environments. Only removable from the service duct, it has a range regulation, flow timer and safety mechanism
Usage:
- For urinals: in service duct area (10 to 50 mm thick partitions)
Recommended working pressure:
- 1 to 5 bars
Flow:
- 10 l/min flow limiter – Anti water-hammer system
Flow time:
- 7 seconds (± 1sec) – Configurable from 3 to 16 seconds
Range:
- Pre-set to 600 mm – Configurable from 100 to 700 mm
Hydraulic supply:
- On G 3/4″ (20×27) solenoid, cold or pre-mixed water
Electricity supply:
- 230 Volt / 12Volt – 6VA transformer built into the box
Thermal resistance:
- Withstands thermal shocks of 75°C for 30 minutes as part of a thermal shock programme
Delivered with:

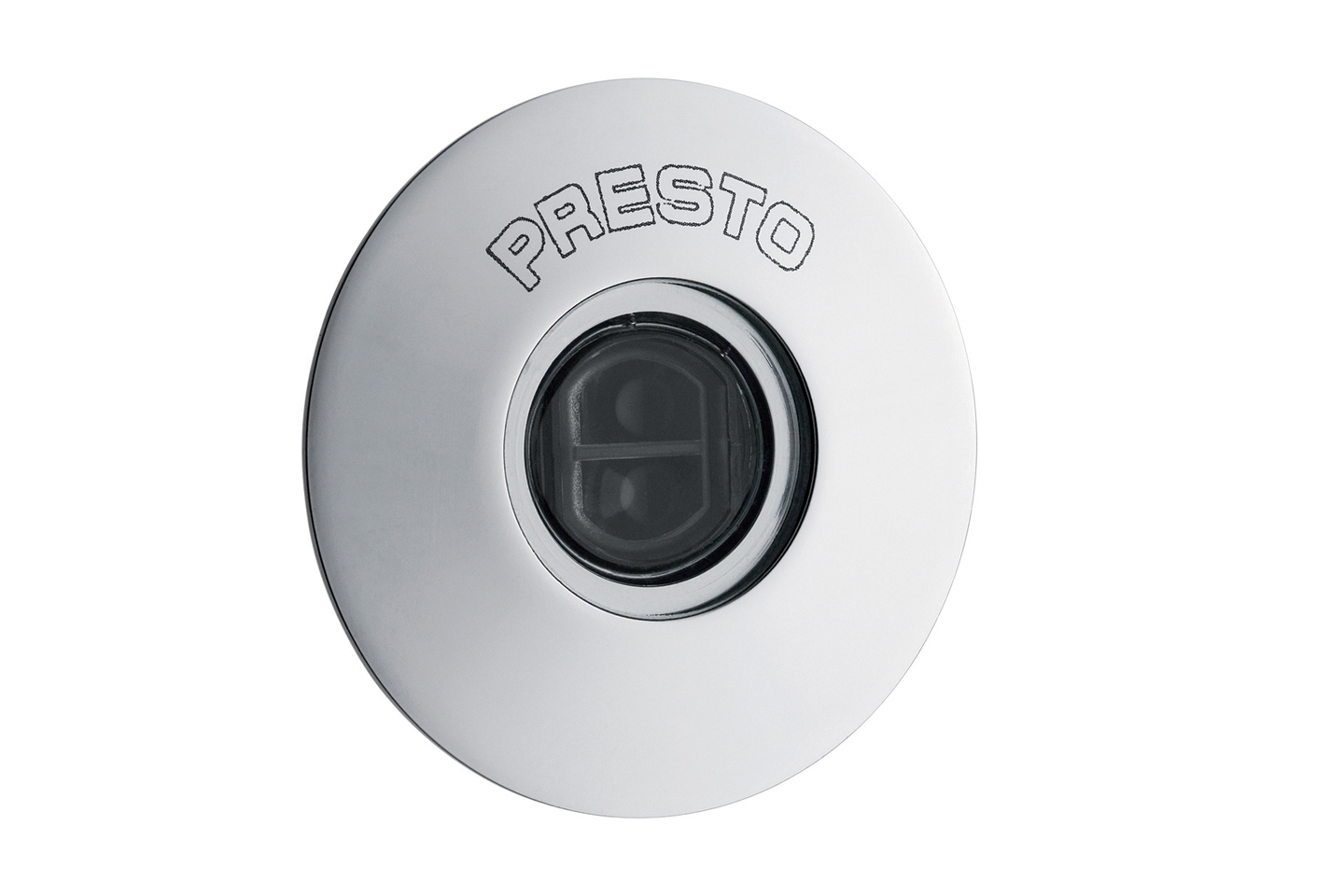

- “- IP65 detection cell for 1 to 50 mm partition supplied with 2 m of cable – 10 3/4″ (20×27) solenoid – 1 Stop valve – 1 IP65 electronic box (including the transformer)”
Standards / Approvals:
- Nickel-chrome surface treatment compliant with NF EN12540 – Neutral salt spray (NSS) resistant: 200 hours according to NF ISO 9227 – Safety transformer compliant with standard EN 60 742
