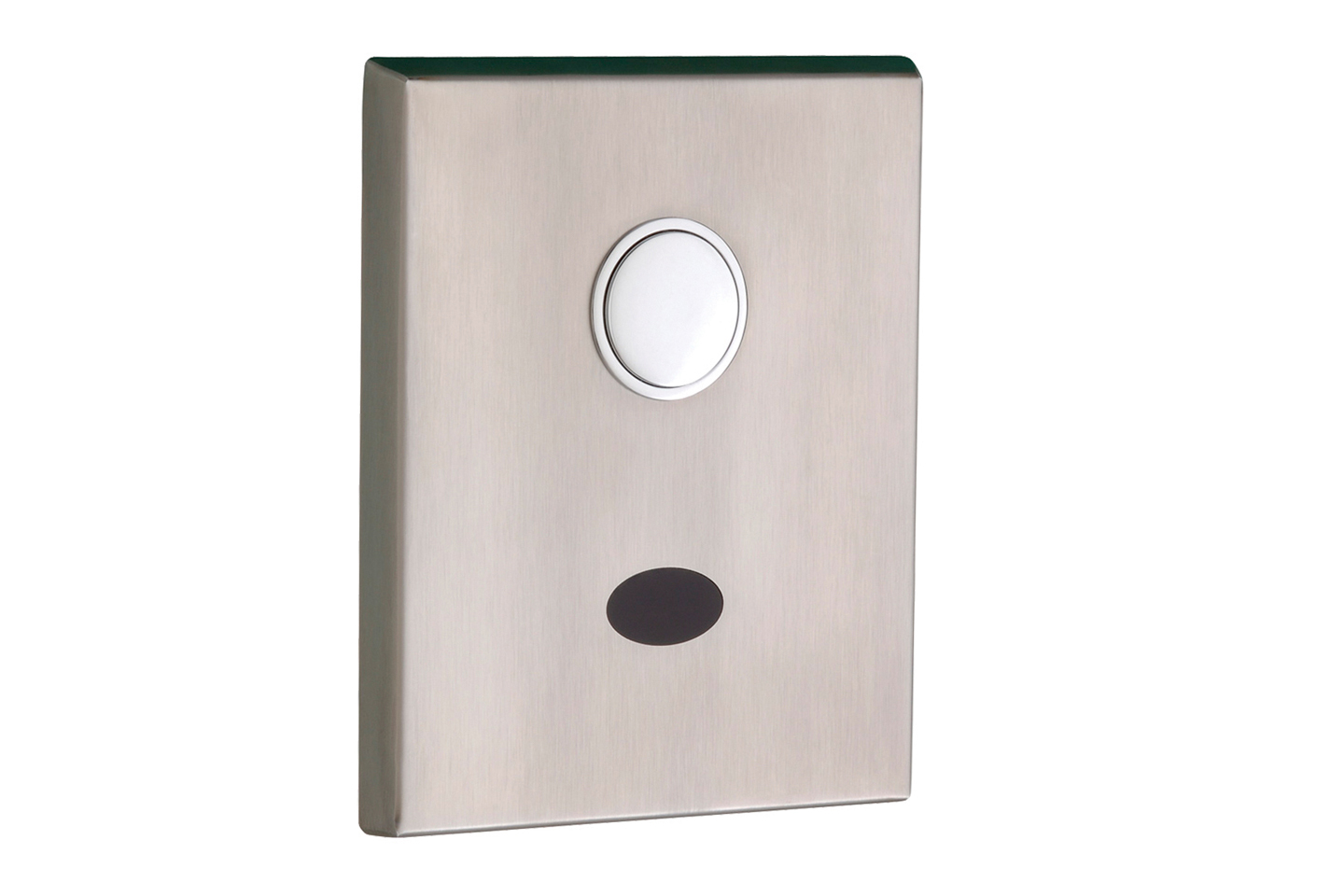

PRESTO CONCEALED 7200 XL VALVE Ref. 55501 | Battery power supply

Part Ref: 55501


Function:

The optoelectronic flush valve automatically triggers the flow of water when the user leaves if they have not pressed the push-button. Recommended for the elderly, the disabled, etc.

ADVANTAGES

  • Automatic flush if the push-button is not used
  • Constant volume of water
  • Anti-blocking system
  • Suitable for the elderly, the disabled, etc.
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function:

  • The optoelectronic flush valve automatically triggers the flow of water when the user leaves if they have not pressed the push-button. Recommended for the elderly, the disabled, etc.

Recommended working pressure:

  • 1 to 5 bars

Flush volume:

  • Adjustable from 6 to 9 l using regulation knob – Anti water-hammer system – Automatic flow limiter guaranteeing a constant flow of 1 l/sec at 1.2 to 4 bars dynamic pressure

Flow time:

  • 6 to 9 seconds

Operation:

  • With electronic / manual control

Electricity supply:

  • 6 Volt lithium battery in built-in watertight case

Hydraulic supply:

  • On P 1000 XL with built-in 3/4″ (20×27) male stop valve – Outlet with connector for flush tube Ø 28 mm Material and finish colour – Raw brass body and stop valve – Brushed 304L grade stainless steel front plate

Safety:

  • Anti siphonic system: protects potable water networks from possible returns of polluted water – S® System preventing blocking in the continuous flow position and guaranteeing complete flushing

Delivered with:

  • 1 Ball stop valve – 1 Installation instructions

Standards / Approvals:

  • Acoustic class II – Brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
