Technical Details
Function

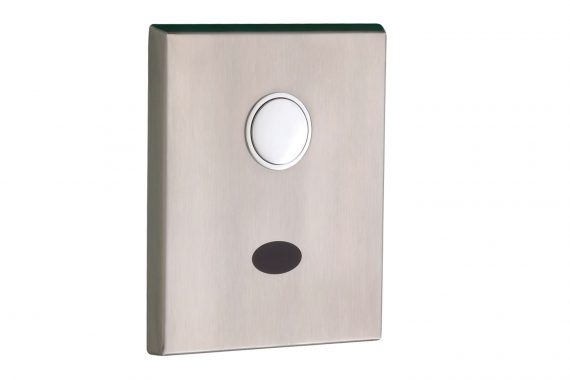

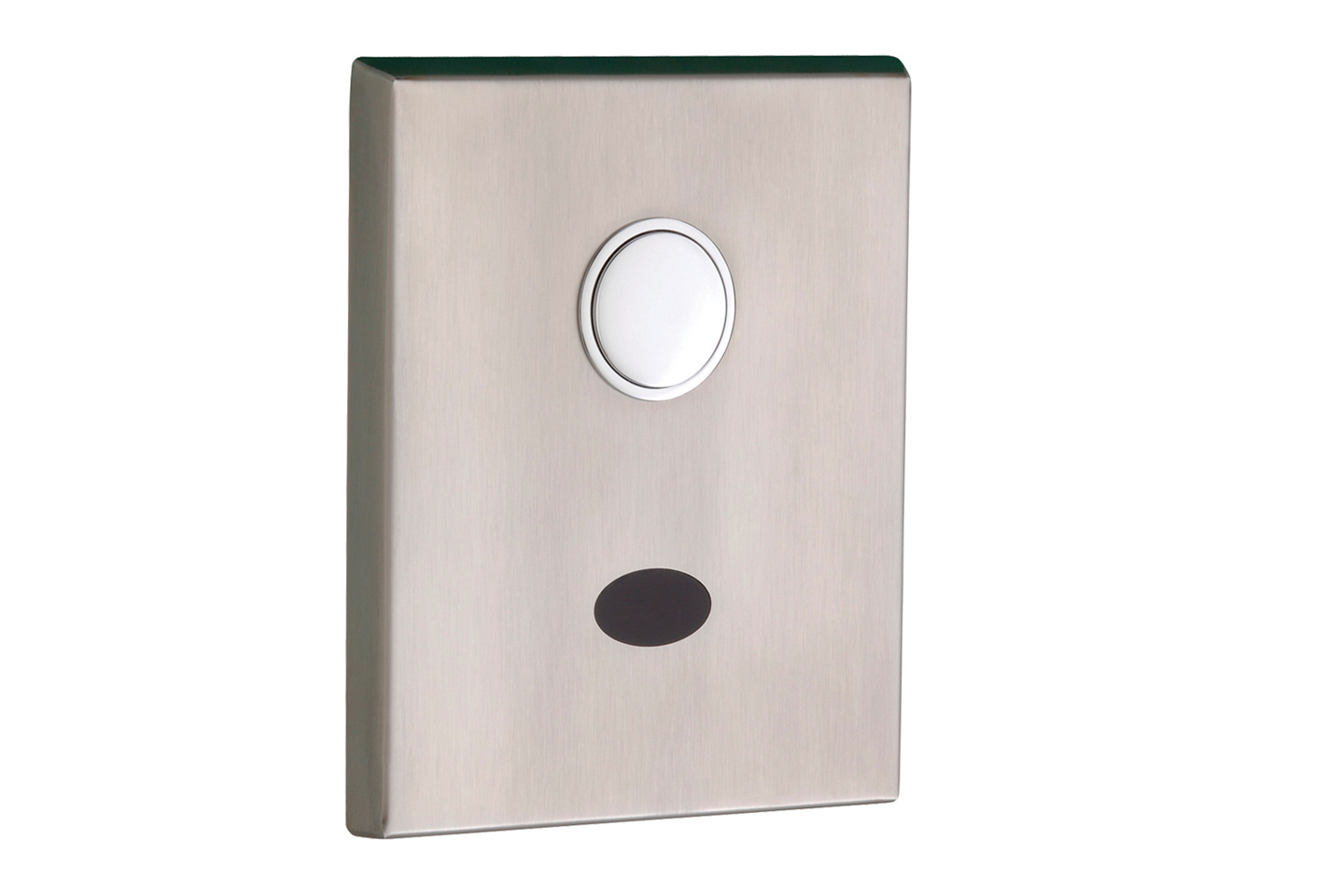

- The optoelectronic flush valve automatically triggers the flow of water when the user leaves if they have not pressed the push-button. Recommended for the elderly, the disabled, etc.
Recommended working pressure:
- 1 to 5 bars
Flush volume:
- Adjustable from 6 to 9 l depending on the programme (4 programmes available) – Anti water-hammer system – Automatic flow limiter guaranteeing a constant flow of 1 l/sec at 1.2 to 4 bars dynamic pressure
Flow time:
- 6 to 9 seconds
Operation:
- With electronic / manual control
Electricity supply:
- 230 V AC / 12 V AC transformer not included – See ref.90464 / 90711 / 90610 / 90685 / 90704 / 90686
Hydraulic supply:
- On P 1000 XL with built-in 3/4″ (20×27) male stop valve – Outlet with connector for flush tube Ø 28 mm Material and finish colour – Raw brass body and stop valve – Brushed 304L grade stainless steel front plate
Safety:
- Anti siphonic system: protects potable water networks from possible returns of polluted water – S® System preventing blocking in the continuous flow position and guaranteeing complete flushing
Delivered with:
- 1 concealed box – 1 Ball stop valve – 1 Reflector – 1 Installation instructions
Standards / Approvals:
- Acoustic class II – Brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
