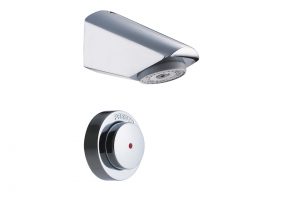

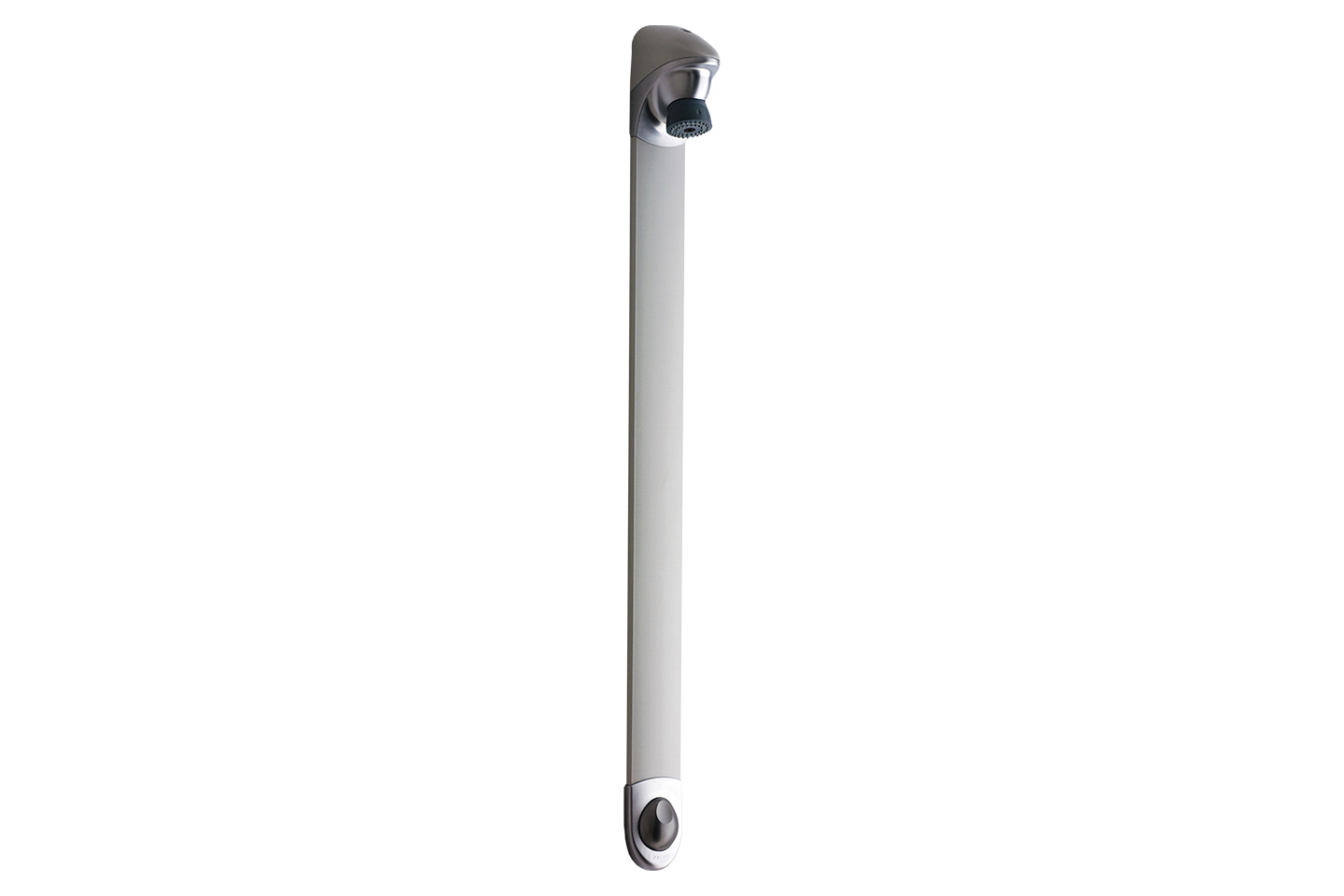

PRESTO DL 400 SE® MP single tap with straight stop valve and anti-bacterial command button

Part Ref: 27460


Timed flow single tap for shower

  • Water saving up to 70%
  • Constant flow and jet giving a gentle rain as compared to system with nozzles
  • Directional shower head with anti-limescale spikes
Categories: , ,
Manufacturer:

Asset 1

Technical Details

Working pressure :

  • 1 to 5 bar

Flow :

  • 6 l/min at 3 bar with integrated flow limiter
  • Anti-water-hammering design
  • Fixed shower head with anti-limescale spikes

Flow time :

  • 30 seconds (± 5 sec.)

Hydraulic supply :

  • G 1/2″ (15×21) Top water inlet with straight stop valve
  • For cold or premixed water

Material and colour finish :

  • Injected molded metal body and cover
  • Extruded cover in aluminum (magnesium-silicon alloy 6060)
  • Anti-bacterial Satin cover on the command button:
  • Germicidal action known by the substances that issue silver ions, being effective against about 650 types of bacteria, virus and fungus. Protection efficiency: lab results (lab certified by IPAC) assure at the end of 100 minutes the full bacteria elimination (as for instance enterococcus, mold, yeast, e-coli, salmonella).

Thermal resistance :

  • Resistant to a temperature of 75°C for 30-minute-thermal-shocks

Security :

  • Patented anti-blocking “S” system to avoid the water to flow continuously
  • Anti-bacterial PROTECTION treatment on the command button

Delivered with :

  • VBA screws and nylon plugs
  • MF G 1/2″ stop valve and filter
  • Instruction manual

Standards & approvals :

  • Acoustic class I
  • Molded chrome-plated body in accordance with EN 12540
  • 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

File File size
pdf Presto DL400 27460 507 KB
