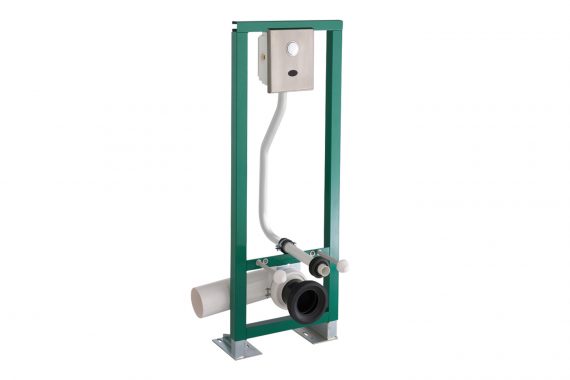

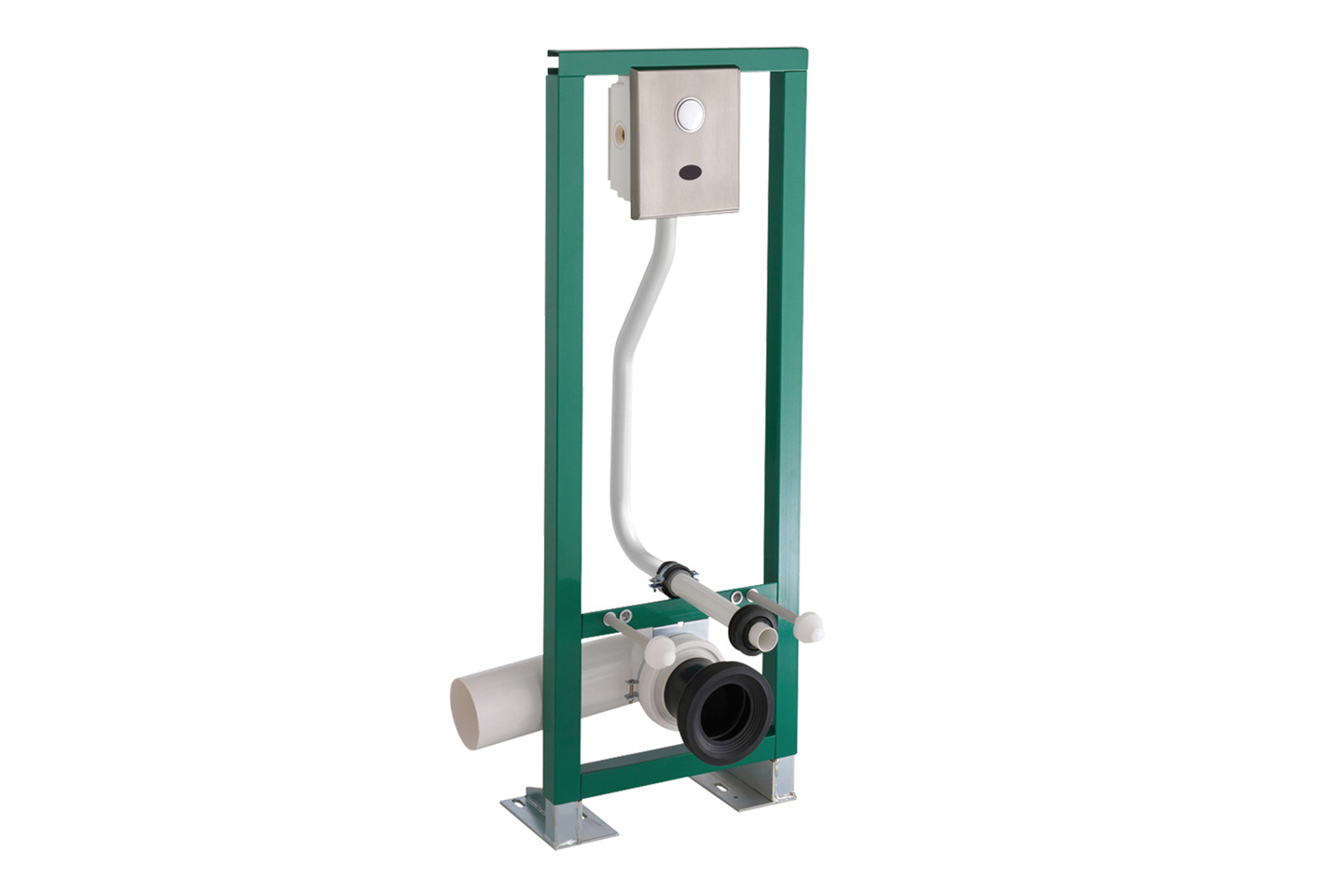

PRESTO FOR DIRECT SINGLE VOLUME FLUSH WITH P7200 XL SELF-SUPPORTING MOUNTING FRAME Ref. 18548  |  Electronic sensor and push-button – Battery power supply

Part Ref: 18548


Function:

The self-supporting mounting frame fro flushes gives great freedom in designing the sanitary area layout. If the user does not press the push-button, the optoelectronic sensor will automatically trigger a constant volume flow of water

ADVANTAGES

  • Self-supporting: does not require a weight-bearing wall
  • Undeformable: reinforced metal structure
  • Push plate control
  • P1000 XL flush valve compliant with NF EN 12541
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function:

  • The self-supporting mounting frame fro flushes gives great freedom in designing the sanitary area layout. If the user does not press the push-button, the optoelectronic sensor will automatically trigger a constant volume flow of water

Recommended working pressure:

  • 1 to 5 bars

Flush volume:

  • Adjustable from 6 to 9 l depending on the programme (4 programmes available) – Anti water-hammer system – Automatic flow limiter guaranteeing a constant flow of 1 l/sec at 1.2 to 4 bars dynamic pressure

Operation:

  • With electronic / manual control

Hydraulic supply:

  • On P 7200 XL with built-in male 3/4″ (20×27) stop valve – Right or left water supply external to the box

Electricity supply:

  • 6 volt lithium battery in a built-in watertight case Material and finish colour – Welded steel frame protected by a 60 micron epoxy powder coating – Galvanised legs and ground fixture plate – Brushed 304L grade stainless steel front plate

Safety:

  • S® system prevents blocking in the continuous flow position and guaranteeing a complete flush – An anti-siphonic system protects the potable water networks from possible returns of polluted water

Delivered with:

  • Brass male female 3/4″ (20×27) water supply extension bushing – PVC Ø 32 mm bowl supply and 50 mm male junction nozzle – Straight PE 100 mm straight evacuation extension with gasket for connection to the bowl – Angled evacuation pipe

Standards / Approvals:

  • Acoustic class II – Chrome plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
