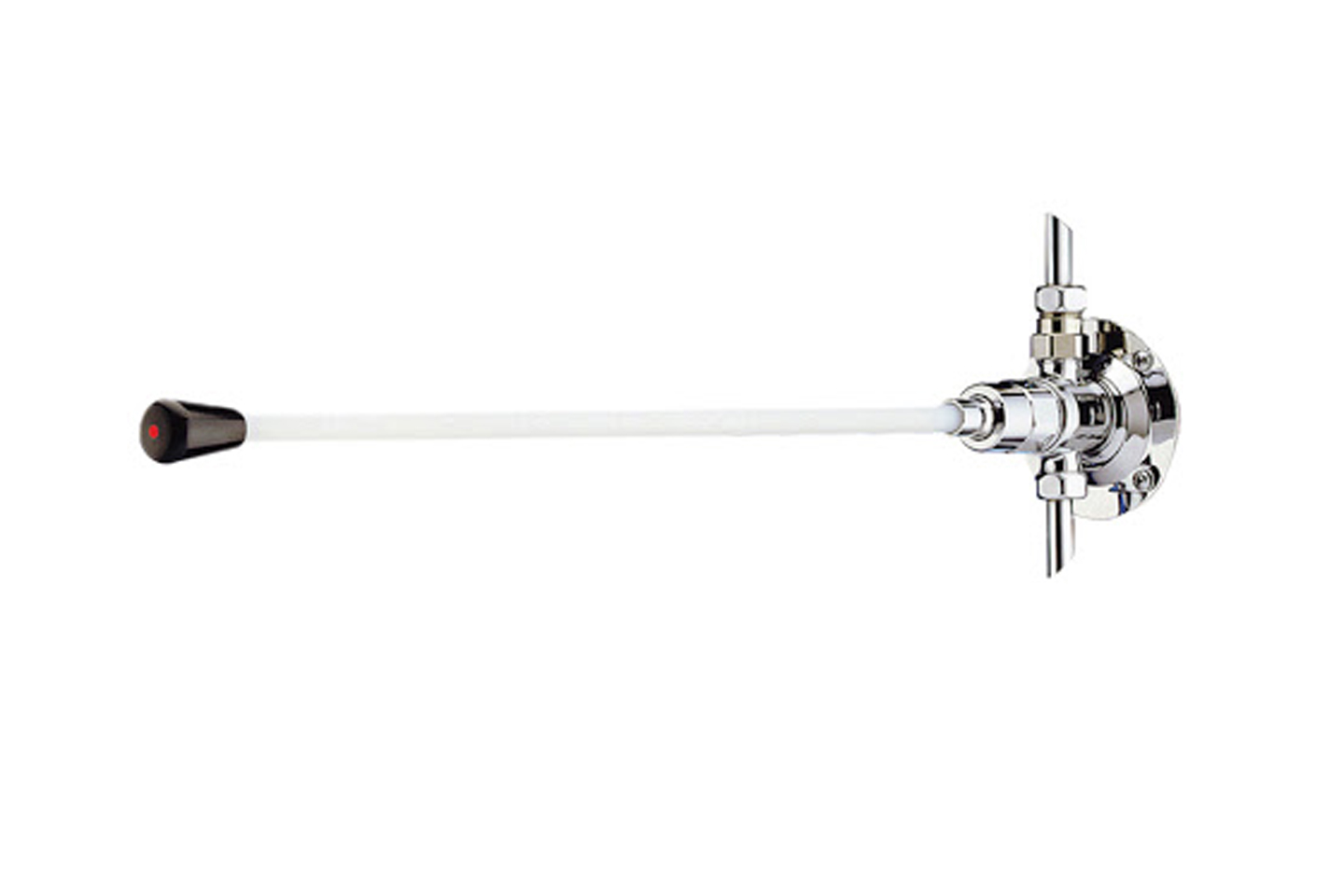

PRESTO 712 Knee operated tap

Part Ref: 31681


Knee operated taps for washbasin

Categories: , ,
Manufacturer:

Asset 1

Technical Details

Working pressure :

  • 1 to 5 bar

Flow :

  • 3 l/min at 3 bar – 4-positions flow adjustment device
  • Anti-water-hammering design

Flow time :

  • 15 seconds (± 5 sec.)

Operation :

  • Knee operated through action on the omnidirectional control (flexible trigger)

Hydraulic supply :

  • Either with hot, cold or mixed temperature water.
  • MG Ч (15×21) Inlet and outlet

Thermal resistance :

  • Resistant to a temperature of 75°C for 30-minute-thermal-shocks

Security :

  • Non-removable, wear-proof red or blue marker

Delivered with :

  • 1 Gasket nut
  • 1 Coupling nut
  • 1 non return valve
  • 2 colored marker (Red and blue)
  • 1 Nut for 12×14 tube
  • Instruction manual

Standards & approvals :

  • Brass body in accordance with EN 1982, EN 12164, EN 12165
  • Molded chrome-plated body in accordance with EN 12540
  • 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
