Technical Details
Function

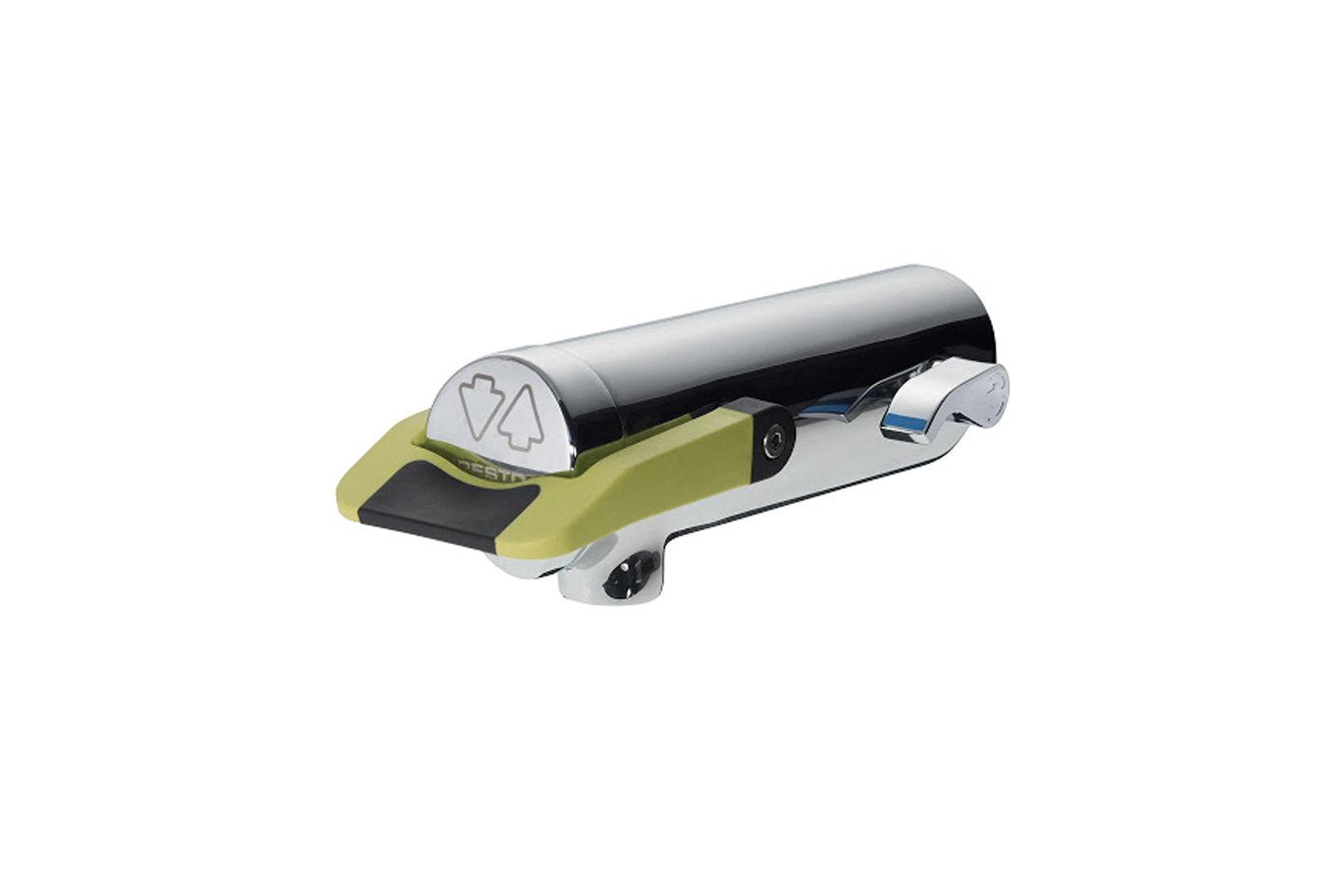

- The PRESTO NEO DUO S wall-mounted mixer tap activates water flow with an easy-to-use lever by lifting up or pressing down the lever. With dual timed flow : short timed flow for moistening (7 sec) and a longer timed flow for hands rinsing (11 sec). With S® antiblocking system to prevent continuous flow.
Recommended working pressure:
- 1 to 5 bars
Flow:
- 3 l/min at 3 bars – 4-position setting – Anti water-hammer system
Flow time
- 7 seconds – lever upwards 11 seconds – lever downwards
Hydraulic supply:
- 2 PEX hoses DN8 G3/8” – 350mm
Thermal resistance:
- This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
Safety :
- With temperature limiter – With S® antiblocking system to prevent blocking in continuous flow.
Convenience :
- Two-coloured ergonomic lever (strong contrast), suitable for children, elderly people and people with reduced mobility
Installation :
- Wall thickness: 0-50mm
Delivered with :
- 2 PEX hoses with swivel nut and NF check valves – 2 MM 3/8” (12×17) stop valves – 2 Filter gaskets – 1 clamping nut
Standards / Approvals:
- Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
