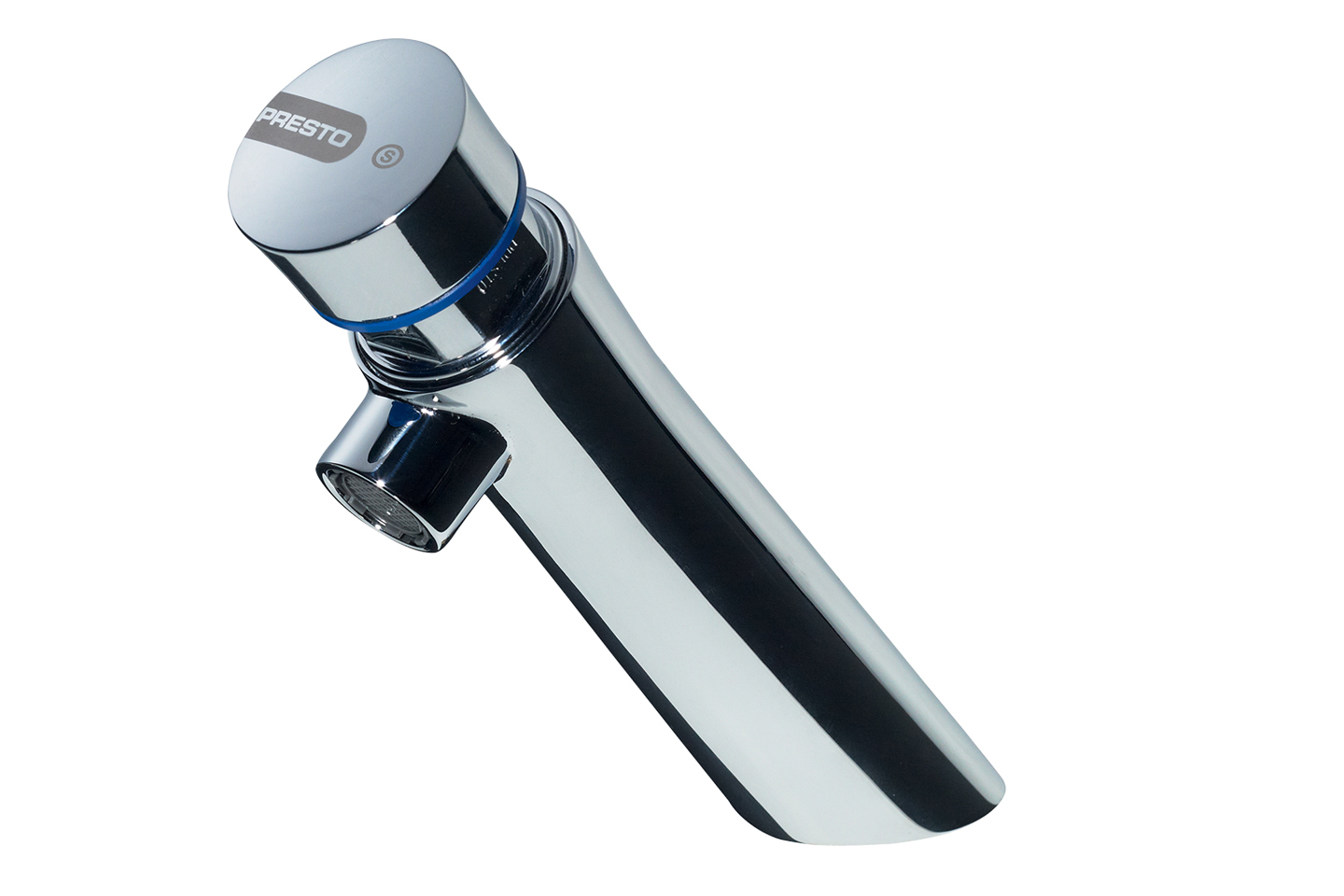

PRESTO NEO – Single Deck-Mounted Tap

Part Ref: 65200


Single deck-mounted washbasin tap turns the water on by simply pressing the push button The water stops running automatically after a factory-set period. With anti-blocking system. With 4-position flow regulation.

ADVANTAGES

  • Patented mechanism guaranteeing constant timed flow
  • 4-position flow adjustment inaccessible to users, non turnable button, non-removable and wear-proof colour marker
  • Easier maintenance: easy-to-replace interchangeable head
  • Aesthetics: Modern design

Asset 1

Technical Details

Working pressure:

  • 1 to 5 bar

Flow:

  • 3 l/min at 3 bars – 4-position setting
  • Anti water-hammer system

Flow time:

  • 15 seconds ± 5 seconds
  • Hydraulic supply:
  • G 1/2” x 40 – cold water

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Safety:

  • Interchangeable head and non-turnable push button to avoid premature wear
  • Non-removable blue circled marker

Delivered with:

  • 1 Nut for 12×14 tube
  • 1 Fibre gasket
  • 1 Stainless steel plain washer
  • 1 Brass clamping nut
  • 1 NBR washer
  • 1 Installation manual

Standards / Approvals:

  • Acoustic class II
  • Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165
  • Nickel-Chrome surface treatment compliant with NF EN12540
  • Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
