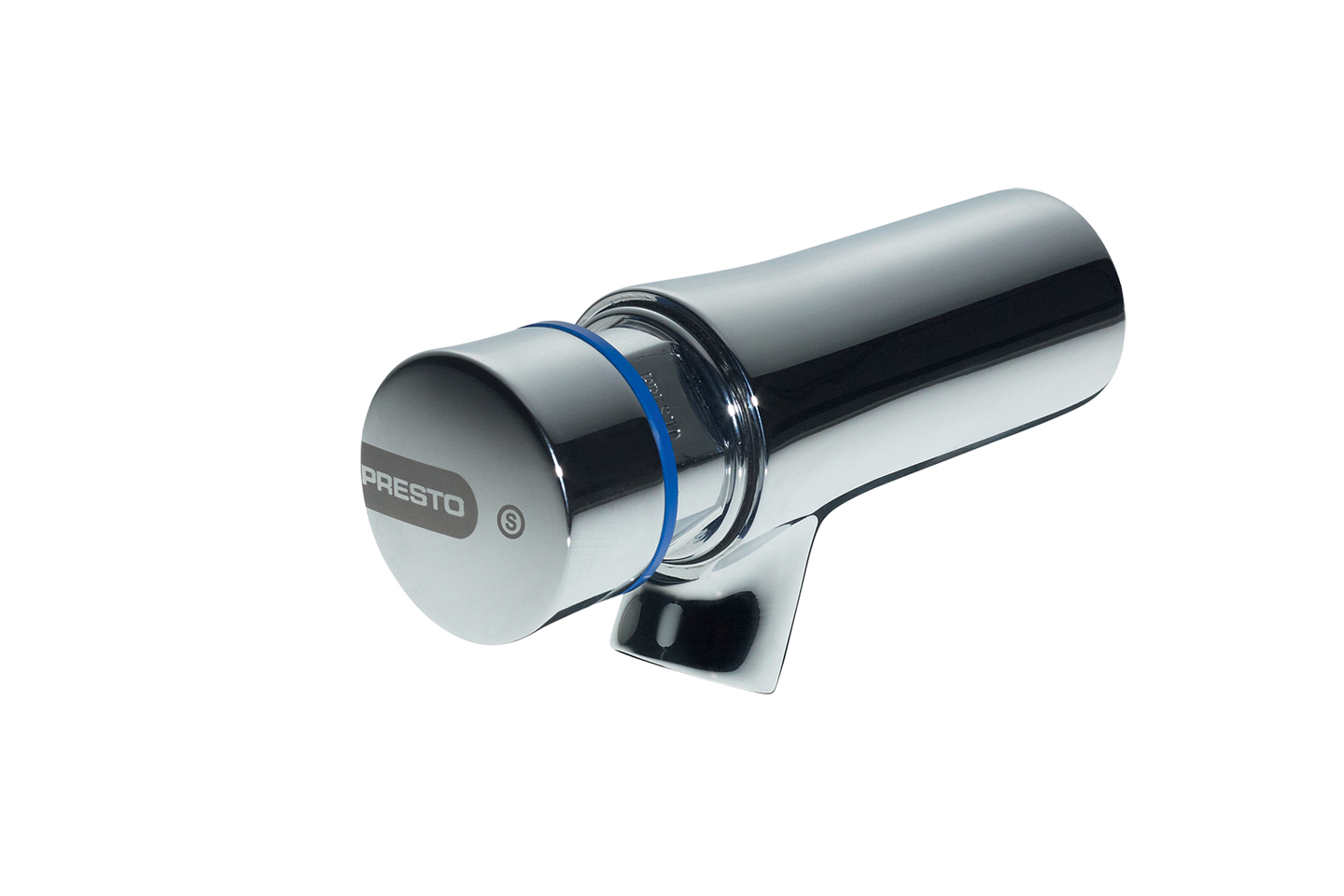

PRESTO NEO S – SINGLE WALL-MOUNTED TAP – 65MM PROJECTION PRESTO NEO®, Ref. 66200  |  Cold water – 15 s

Part Ref: 66200


This single wall-mounted tap turns the water on by simply pressing the push button. The water stops running automatically after a factory-set period. With anti-blocking system. With 4-position flow regulation. Several body lengths available.

ADVANTAGES

  • Patented mechanism guaranteeing constant timed flow
  • 4-position flow adjustment inaccessible to users, non turnable button, non-removable and wear-proof colour marker
  • Easier maintenance: easy-to-replace interchangeable head
  • Aesthetics: Modern design
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function:

  • The wall-mounted PRESTO NEO S® cold water tap closes automatically thanks to a fixed 15 second timer.

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 3 l/min at 3 bars – 4-position setting – Anti water-hammer system

Flow time

  • 15 seconds

Hydraulic supply:

  • G 1/2” x 15

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Safety:

  • With S® antiblocking system to prevent blocking in continuous flow – Interchangeable head and non-turnable push button to avoid premature wear – Non-removable blue circled marker

Delivered with :

  • 1 installation manual

Standards / Approvals:

  • Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
