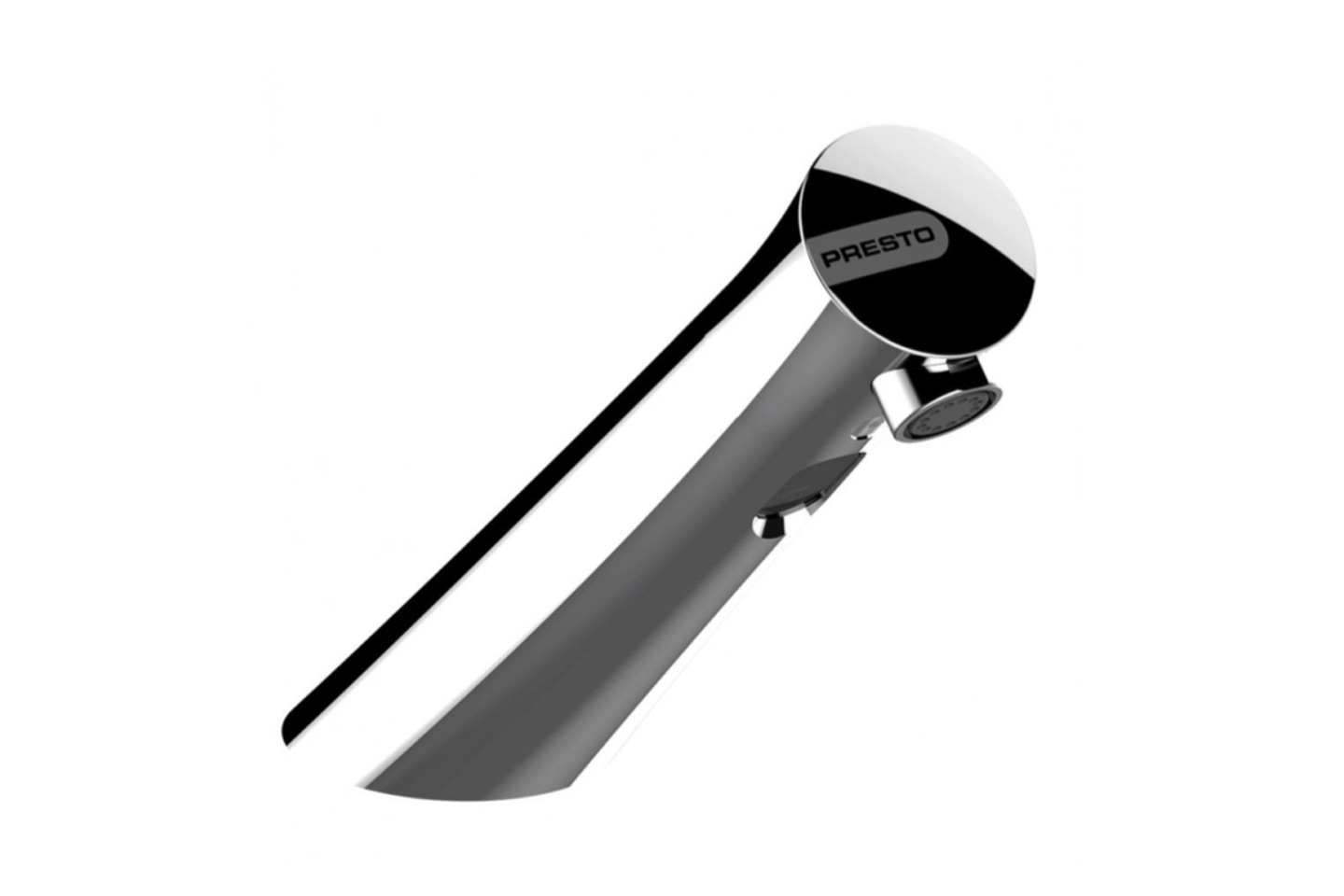

PRESTO NEO Sensor deck-mounted – Power Supply | Single deck-mounted sensor tap

Working pressure

• 1 to 5 bar

Flow

• 1.9 l/min with integrated spray flow limiter

High quality anti-limescale sprayer

• Anti-water-hammering design

Hydraulic supply

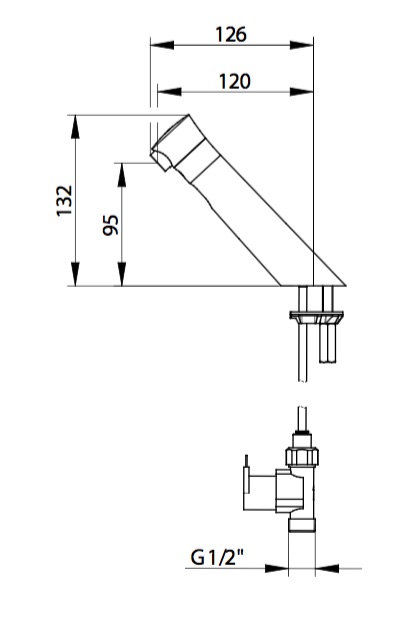

• On Male G 1/2″ (15×21) connection – Cold or premixed water

Power supply

• Low voltage power supply (12-24V AC/DC) in IP65 Water Proof case

Material and colour finish

• Injected metal and brass. Chrome plated.

Thermal resistance

• Resistant to a temperature of 75°C for 30 minutes thermal shocks

Security

• Anti-overflow security time: 30 seconds (anti-blocking system preventing the water to flow continuously)
• Automatic shutdown of solenoid valve in case of power failure or sensor error
• Duty flush 45s each 24h after last use

Delivered with

• 1 Mounting assembly kit ( Clamping & nut)
• 1 Filter gasket
• 1 solenoid valve
• 1 power supply (battery & battery box)
• 1 installation guide

Standards & approvals

• Brass in accordance with EN1982, EN12164 & EN1165
• Brass UBA list compliant
• REACH and RoHS compliant
• 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
