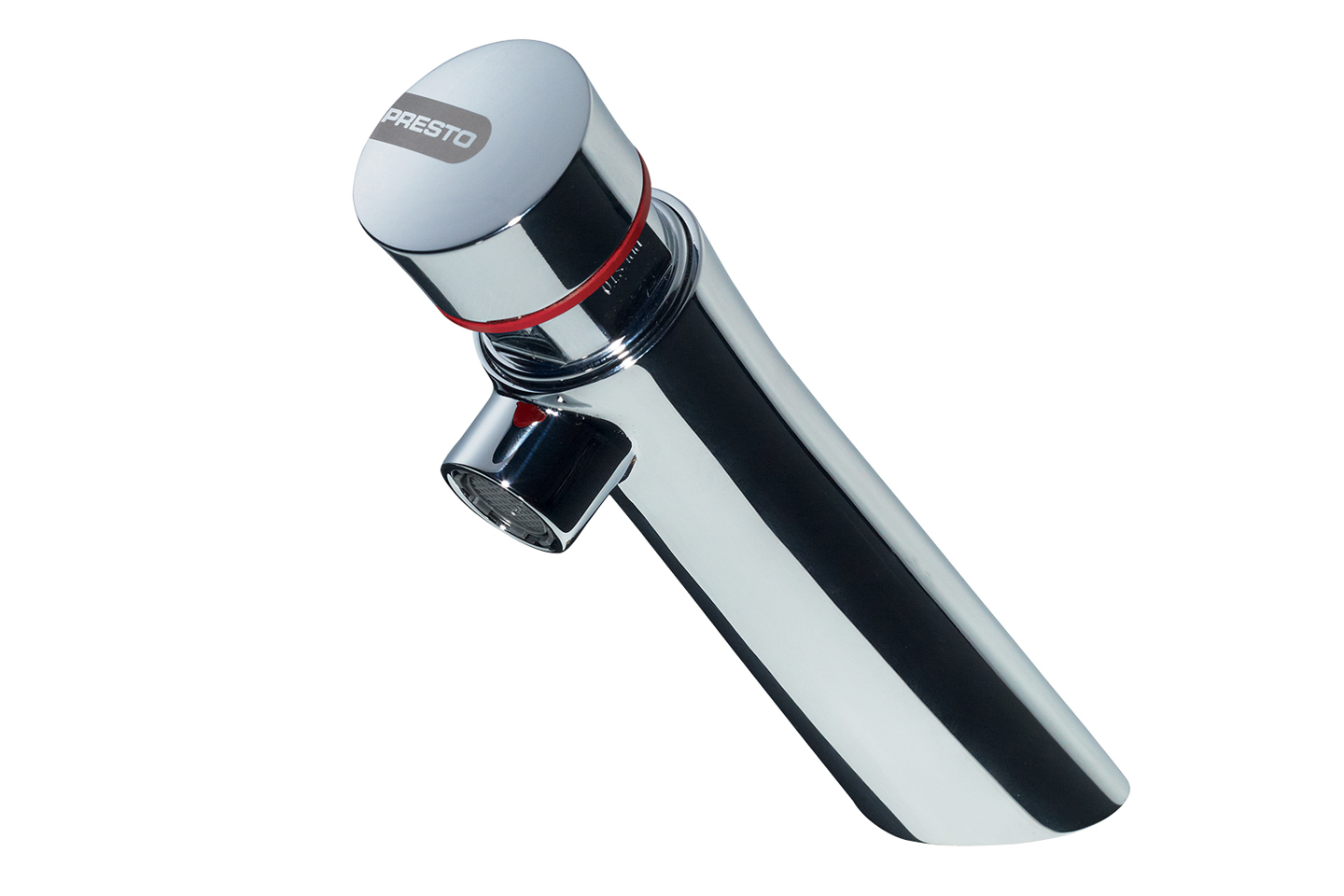

PRESTO NEO – SINGLE DECK-MOUNTED TAP PRESTO NEO® Ref. 65100 | Hot water – 15 s

Part Ref: 65100


Categories: ,
Manufacturer:

Asset 1

Technical Details

Function

  • The deck-mounted PRESTO NEO hot water tap closes automatically thanks to a fixed 15 second timer.

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 3 l/min at 3 bars – 4-position setting – Anti water-hammer system

Flow time

  • 15 seconds

Hydraulic supply:

  • G 1/2” x 40

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Safety:

  • Interchangeable head and non-turnable push button to avoid premature wear – Non-removable red circled marker

Delivered with :

  • 1 Nut for 12×14 tube
  • 1 Fibre gasket – 1 Stainless steel plain washer – 1 Brass clamping nut – 1 NBR washer – 1 Installation manual

Standards / Approvals:

  • NF compliant (in progress) – Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
