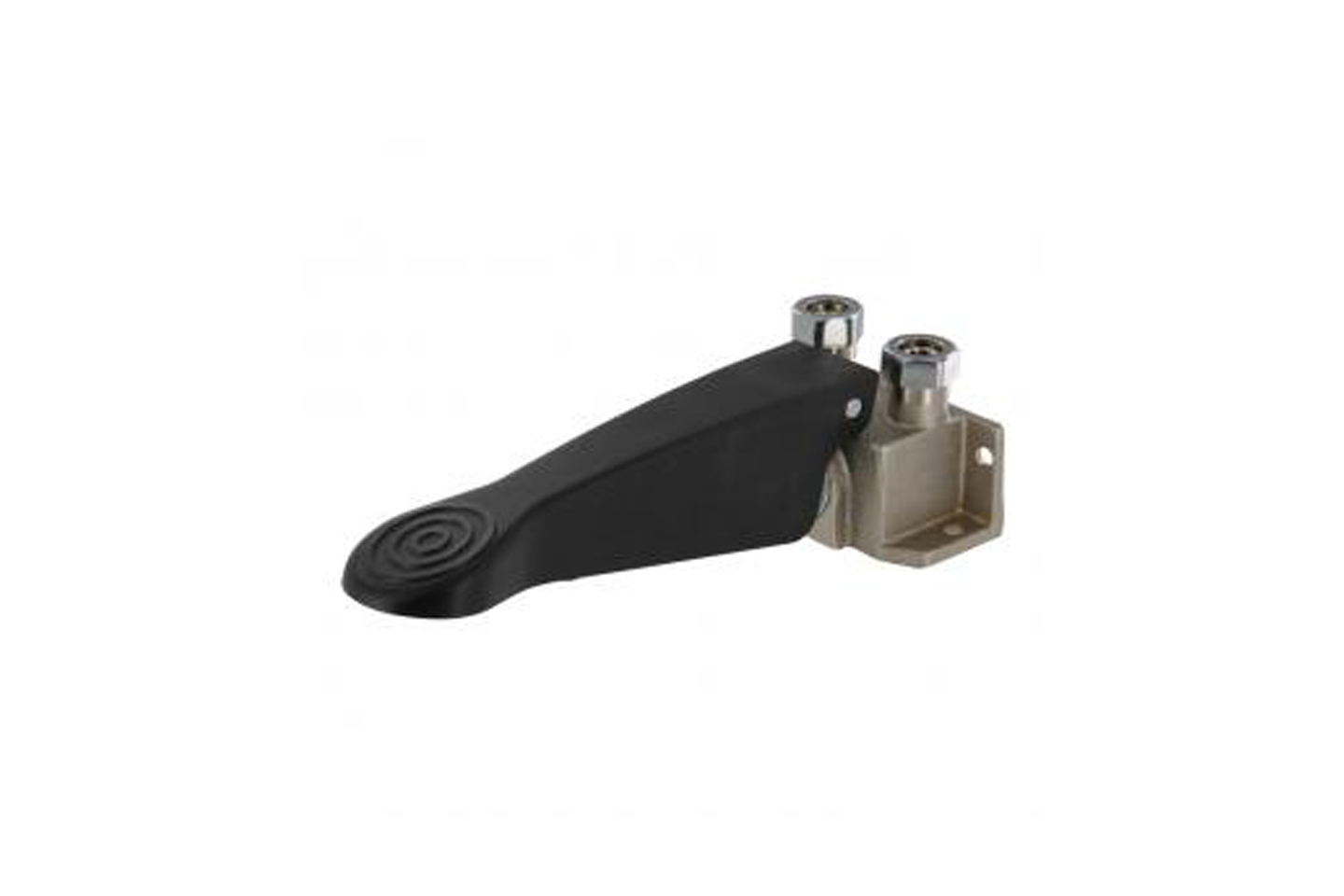

PRESTO SOL 520 SINGLE PEDAL

Part Ref: 23614


This single mono-pedal foot control tap requires no hand contact guaranteeing perfect hygiene and is adapted for food industry use. Slow shut-off to prevent water-hammering.

  • Pressure 1 to 5 bars.
  • Flow 6 l/min at 3 bars – 4-position setting – Anti water-hammer system.
  • Flow Time 3 to 5 seconds
  • Foot operation.
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function

  • This PRESTO SOL 520, single pedal, foot controlled, self-closing washbasin tap is used to control the flow of cold, hot or mixed water by simply pressing the pedal. Slow shut-off to prevent water-hammering.

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 6 l/min at 3 bars – 4-position setting – Anti water-hammer system

Flow time:

  • 3 to 5 seconds

Operation:

  • By pressing the pedal

Hydraulic supply:

  • Male G 1/2″ (15×21) inlet for cold, hot or pre-mixed water

Material and colour finish:

  • Nickel-chrome treated brass body and components – Technical polymer

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C for 30 minutes

Delivered with:

  • 1 Gasket nut – 1 Connecting nut – 1 Nut for 12×14 mm tube – Instruction manual

Standards / Approvals:

  • Acoustic class II – Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
