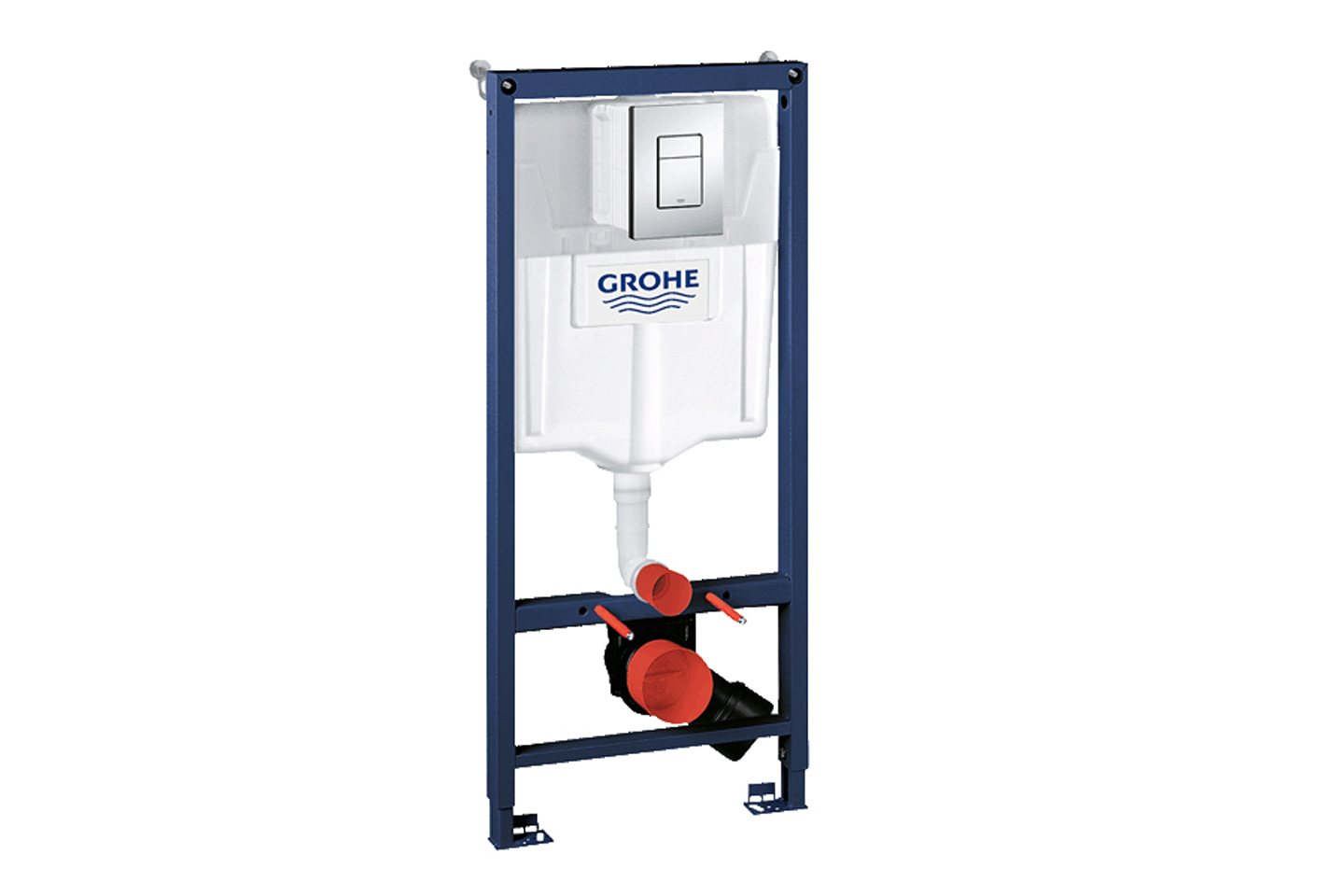

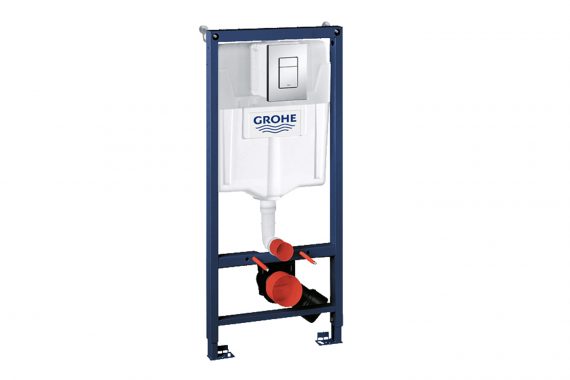

GROHE Rapid SL 3 in 1 set for WC

Part Ref: 38772001


Categories: , ,
Manufacturer:

Asset 1

Technical Details

flushing cistern GD 2 with small maintenance access

  • 1.13 m installation height
  • for on-the-wall installations or studded walls
  • powder coated steel frame, self-supporting for dry-cladding, completely pre-assembled with fixed connections for single or series installation
  • quick adjustment, lockable
  • fixing material
  • TÜV approved
  • 2 WC fixing bolts
  • fixing device for ceramic
  • distance of fixing bolts 180/230 mm
  • outlet bend Ø 80 mm
  • depth adjustable reducer Ø 80/100 mm
  • inlet and outlet connecting set
  • adjustment ex factory 6 l and 3 l
  • pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or non-interruptible water supply from left/right or back
  • insulated against condensation
  • ½” water supply connection including integrated
  • angle valve and push fit flexible hose union
  • no tools required for the installation of the inspection shaft incl. protection during construction phase, for vertical or horizontal use
  • accessories for on-the-wall installation
  • including wall plate Skate Cosmopolitan for dual flush or start & stop actuation
  • for vertical and horizontal installation
  • 156 x 197 mm
  • chrome made of ABS
  • GROHE StarLight® chrome finish
