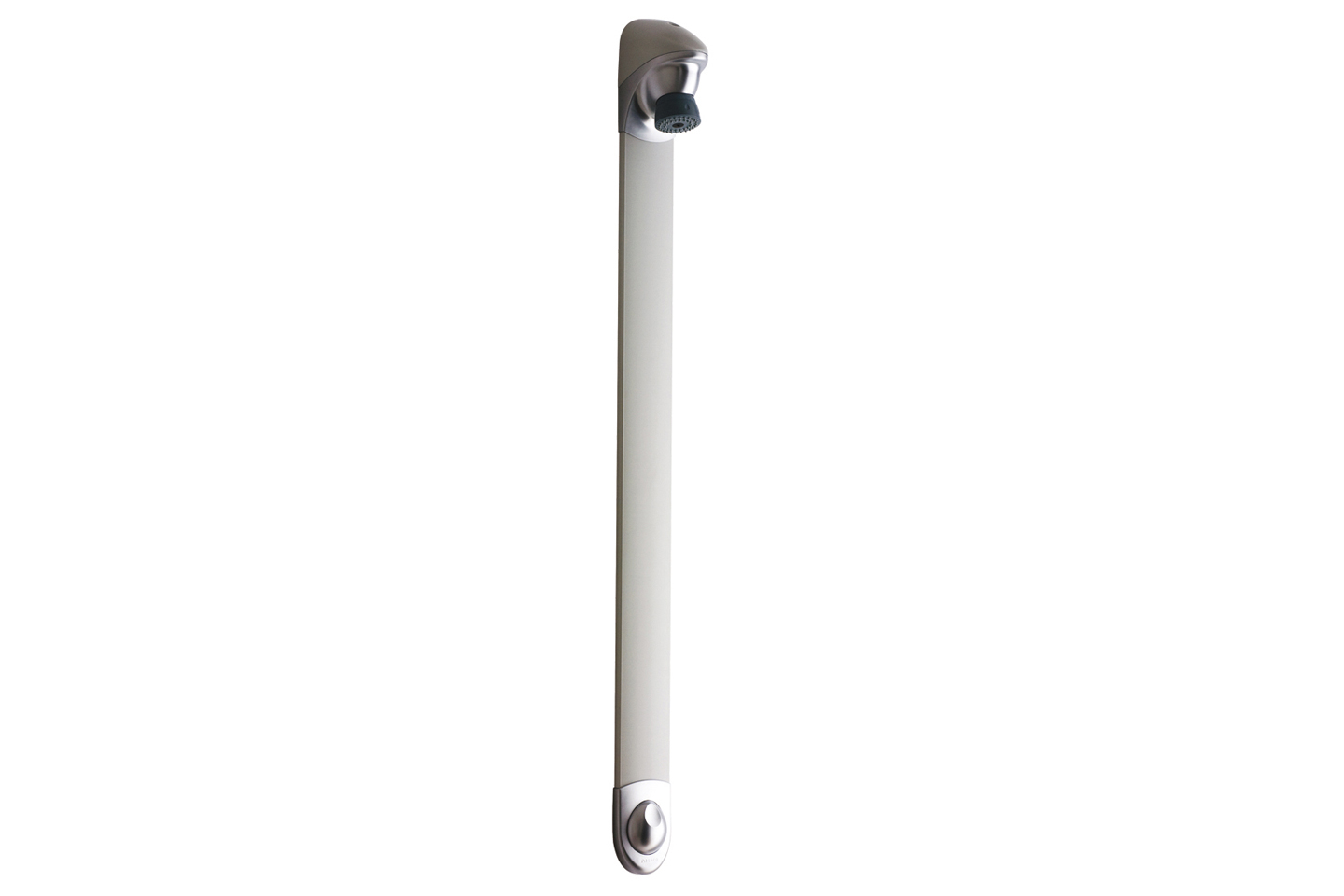

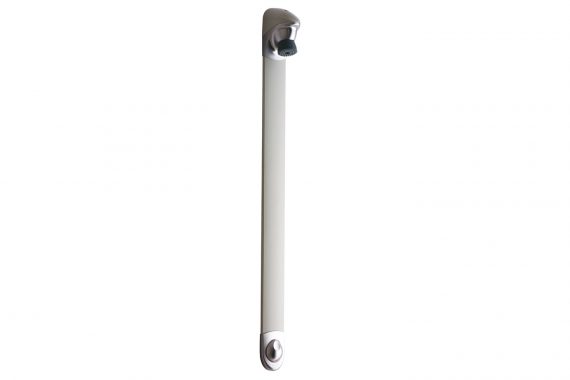

PRESTO SHOWER PANEL DL 400 SE, Ref. 27402 | With angled stop valve – satin grey finish

Technical Details

Function:

• Single tap for pre-mixed water. To activate the flow of water, press lightly on the button. The water stops automatically after a factory-set period (30 seconds).

Recommended working pressure:

• 1 to 5 bars

Flow:

• 6 l/min at 3 bars using a built-in flow regulator – Anti water-hammer device – Fixed directional shower head fixed with anti limescale spikes

Flow time:

• 30 seconds (-10/+5 s.)

Hydraulic supply:

• G 1/2” (15×21) from the top on angled MF stop valve

Material and finish colour:

• Injected moulded metal body – Aluminium-Magnesium-Silicon 6060 alloy extruded profile

Thermal resistance:

• This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Safety:

• S® system, preventing the tap being jammed with the water flowing continuously

Delivered with:

• Male 3/4″ stop valve and filter gasket

Standards / Approvals:

• Acoustic class I – Brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
