Technical Details
Function:

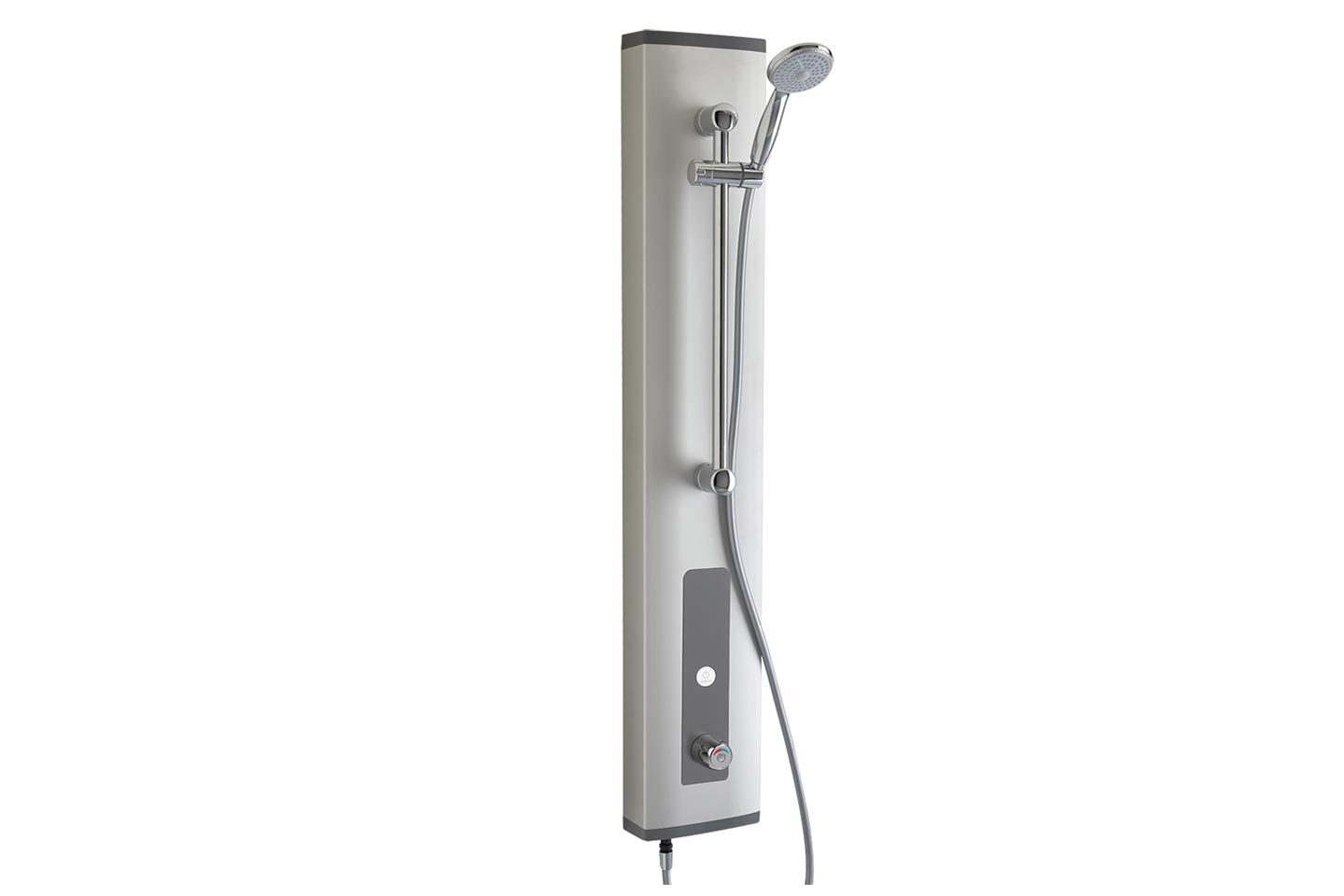

- Shower panels for pre-mixed water supply. The water flow is activated by simply lightly brushing the button. The water stops automatically after a factory-set period (30 seconds) or at any time by lightly touching the button a second time. Integrated Mastermix inside technology : anti-scalding system (water flow is immediately stopped if the cold water is cut off), no cross-connection between hot and cold water.
Recommended working pressure:
- 1 to 5 bars
Flow time:
- 30 seconds (Adjustable from 1s to 5 mn), function start/stop – Flow time and frequency can be programmed.
Hydraulic supply:
- G 1/2” (15×21), top or rear inlet. For rear inlet, please use the adaptation kit referenced 91026.
Electricity supply:
- 6 Volts lithium battery type CRP2 in an integrated box inside the panel
Material and colour finish:
- Anodized aluminium profile (2,5 mm thickness) – Removable valve plate in aluminium painted RAL 7005
- Covers in ABS high resistance RAL 7015
Thermal resistance:
- The tap resists to 75°C temperature during 30 minutes in case of thermal shock
Delivery with:
- Hose 1/2″ (15×21) with turnable nut
- Stop-valves 1/2″ (15×21) and filter 250 µm
- Fixation screw – Mounting instruction
Standards / Approvals:
- Brass body in accordance with EN 1982, EN 12164, EN 12165 – Molded chrome-plated body in accordance with EN 12540 – 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
