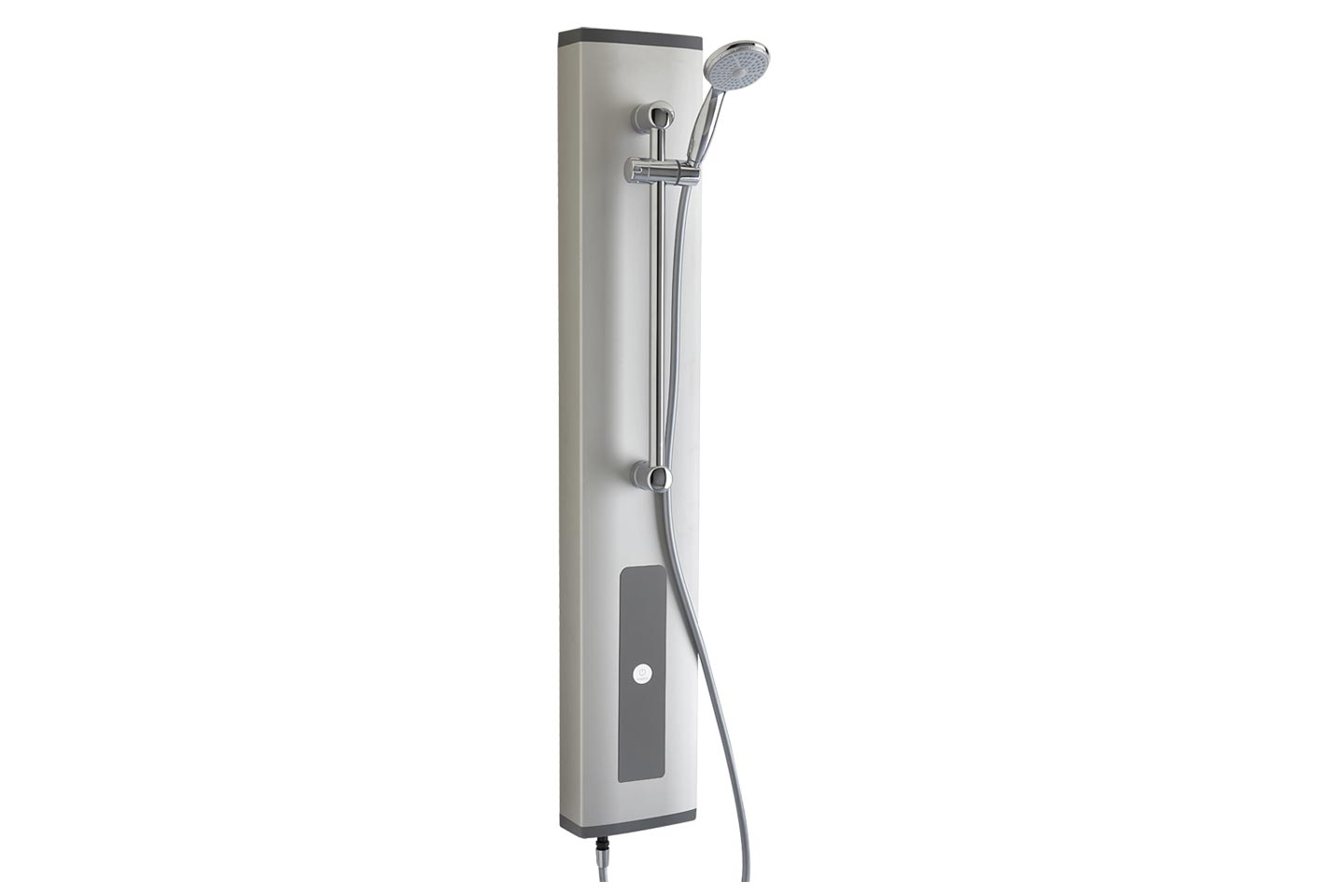

Shower Panel with Presto Touch, Ref. 88834 | Top or rear water inlet, hand-held spray shower

Part Ref: 88834


Categories: ,
Manufacturer:

Asset 1

Technical Details

Function:

  • Shower panels for pre-mixed water supply. The water flow is activated by simply lightly brushing the button. The water stops automatically after a factory-set period (30 seconds) or at any time by lightly touching the button a second time.

Recommended working pressure:

  • 1 to 5 bars

Flow time:

  • 30 seconds (Adjustable from 1s to 5 mn), function start/stop – Flow time and frequency can be programmed.

Hydraulic supply:

  • G 1/2” (15×21), top or rear inlet. For rear inlet, please use the adaptation kit referenced 91026.
  • For PRESTO TOUCH, with cold water or premixed water.

Electricity supply:

  • 6 Volts lithium battery type CRP2 in an integrated box inside the panel

Material and colour finish:

  • Anodized aluminium profile (2,5 mm thickness) – Removable valve plate in aluminium painted RAL 7005
  • Covers in ABS high resistance RAL 7013

Thermal resistance:

  • The tap resists to 75°C temperature during 30 minutes in case of thermal shock

Delivery with:

  • Hose 1/2″ (15×21) with turnable nut
  • Stop-valves 1/2″ (15×21) and filter 250 µm
  • Fixation screw – Mounting instruction

Standards / Approvals:

  • Brass body in accordance with EN 1982, EN 12164, EN 12165 – Molded chrome-plated body in accordance with EN 12540 – 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
