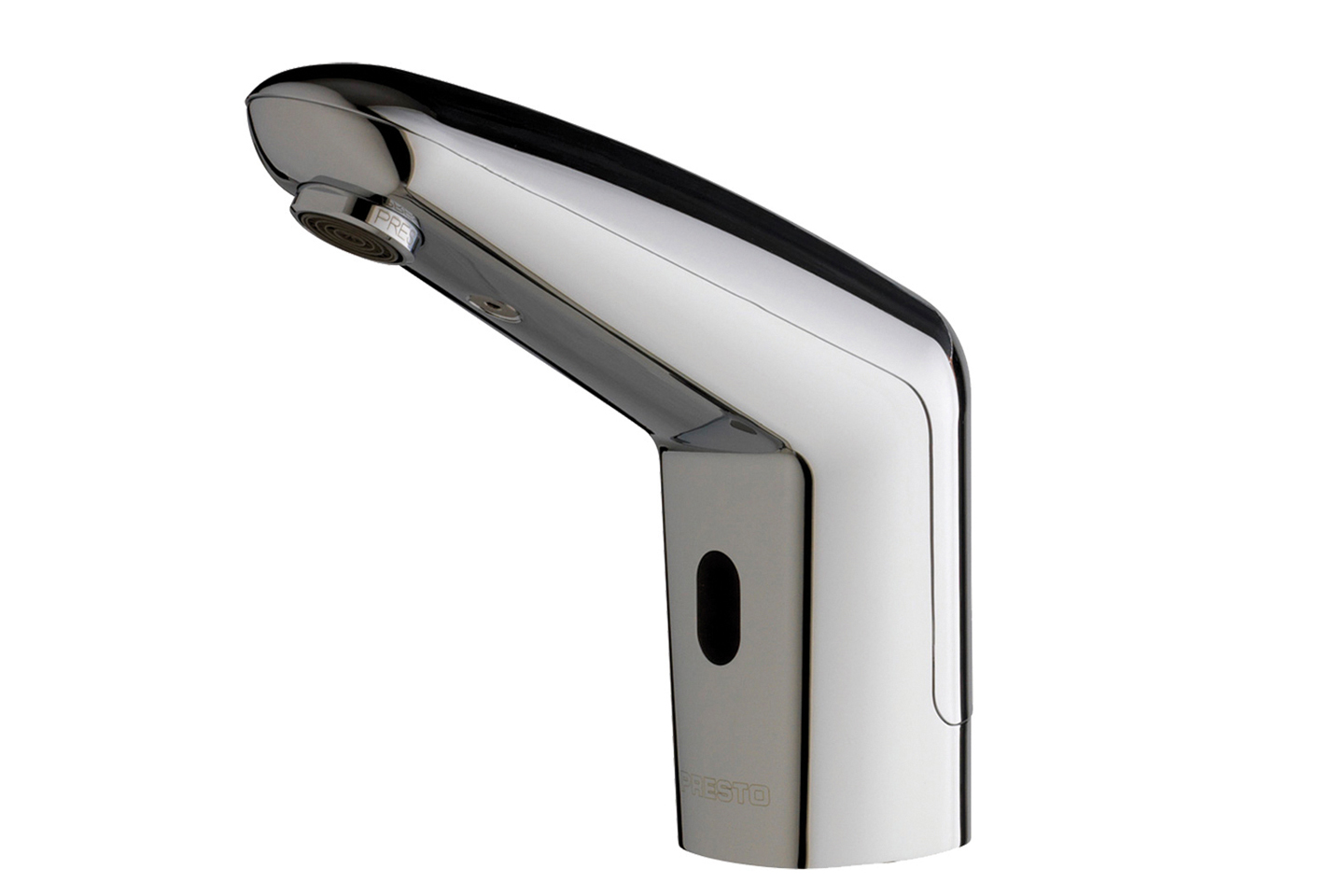

PRESTO SINGLE DECK-MOUNTED TAP VOLTA, Ref. 55050 | 230 V AC/7 VDC IP65 transformer – PEX hoses – Straight stop valve
Part Ref: 55050
The single VOLTA tap is available with a built-in battery power supply or with a remote transformer. The anti-overflow system on this tap makes it suitable for all environments.
ADVANTAGES
The electronics are built into the tap body (cell, solenoid and battery where applicable), for quick installation and increased vandalism protection.
Optimum detection whatever position the hands are in
Anti-blocking system preventing continuous flow for more than 30 seconds
This single (cold or pre-mixed water supply) mono-block washbasin tap activates the water flow whenever hands are detected under the tap and automatically shuts off the flow when they are removed.
Recommended working pressure:
1 to 5 bars
Flow:
3 l/min using a built-in flow limiter – High quality anti-limescale aerator – Anti water-hammer effect system
Hydraulic supply:
G 3/8″ (12×17) for cold, hot or pre-mixed water
Electricity supply:
230 VAC / 7 VDC transformer in an watertight IP65 case
Material and colour finish:
Injected moulded metal body and cover
Thermal resistance:
Withstands thermal shocks of 75°C for 30 minutes as part of a thermal shock programme
Safety:
Automatic shut off of the solenoid if the water runs for > 30 seconds or if the sensor is deteriorated
Delivered with:
1 Clamping nut – 1 Gasket and 1 washer – 1 Hose with revolving nut – 1 Stop valve MM G 3/8″ (12×17) – 1 Filter gasket – 1 Self-adhesive sticker
Standards / Approvals:
The brass used complies with standards NF EN1982, EN12164, EN12165 – 200h neutral salt spray resistant (NSS) in compliance with standard NF ISO 9227.
