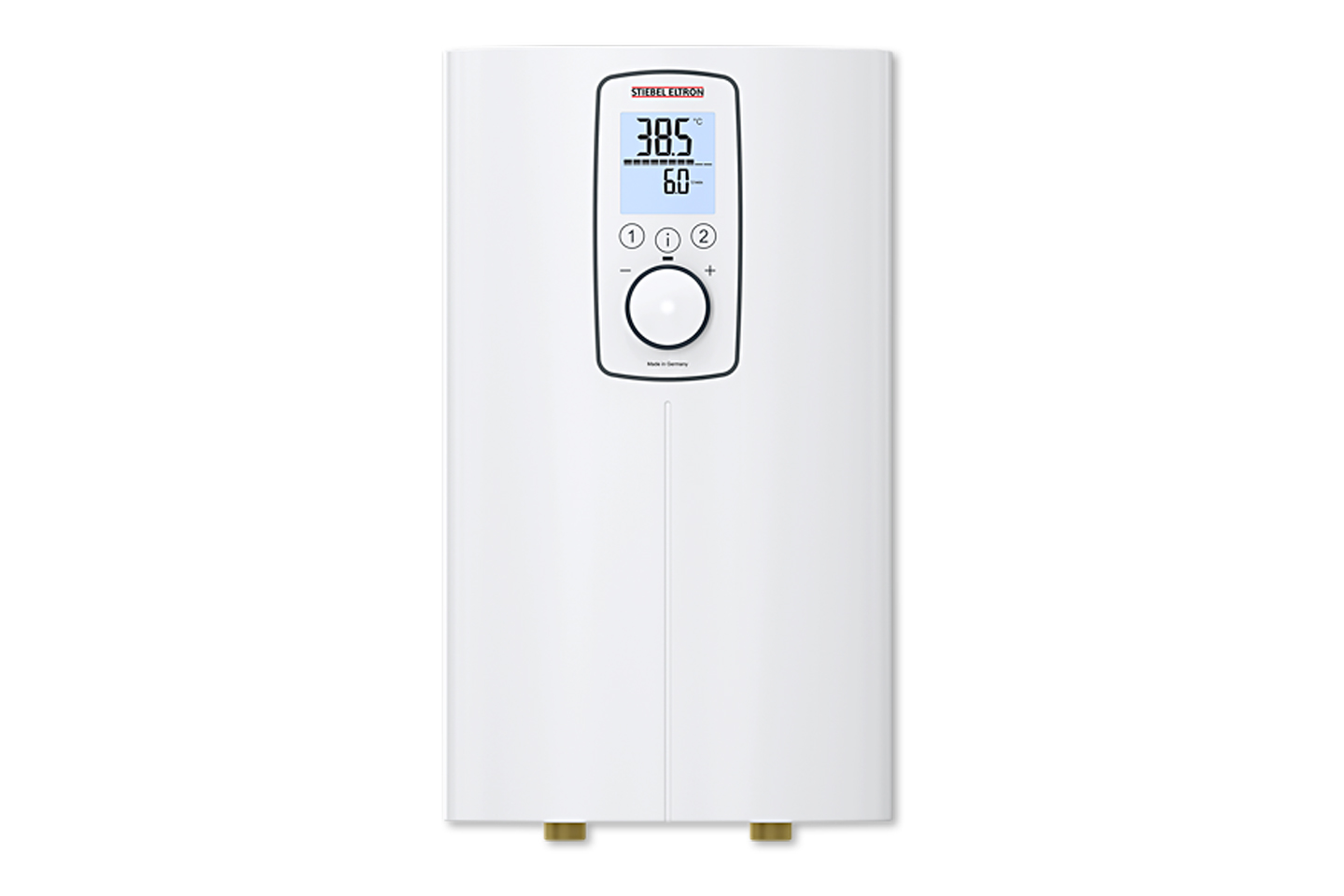

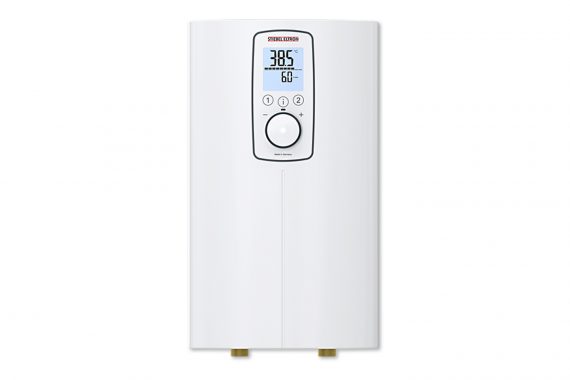

STIEBEL ELTRON DCE-X 10/12 Premium Compact Instantaneous Water Heater

Part Ref: 238159


Compact DCE-X Premium instantaneous water heater – A compact appliance with clever functions.

The DCE-X Premium compact instantaneous water heater, as the first in its class to feature 4i technology, works so precisely that accurate temperature delivery is guaranteed at all times. Frequently used temperature settings can be stored with the aid of two memory keys. As water is heated only shortly prior to draw-off, energy efficiency is increased.

Categories: ,
Manufacturer:

Asset 1

Description

Precise information at a glance.

The illuminated multifunction display enables easy operation of the appliance. It also shows the set water temperature at all times. Precise information on the current power consumption, energy consumption, flow rate and time, as well as status and service indicators, can be accessed as required.

Space is not an issue.

Thanks to its compact design, the DCE-X Premium is suitable for the kitchen sink, washbasin, and even the shower. In commercial settings, it can be used in utility rooms or for supplying multiple hand washbasins in sanitary facilities.

The Main Features

  • Fully electronic compact instantaneous water heater with 4i technology
  • Maximum energy efficiency and accurate temperature delivery at all times thanks
  • to fully electronic closed-loop control
  • Easy operation via a large, backlit multifunction display
  • Particularly energy efficient in ECO mode
  • High grade design
  • Two temperature memory keys

Technical Details



  • Width 2372 mm x Depth 2717 mm x Height 109 mm
  • Rated voltage 1 220v
  • Rated Output 1 10,0/12,0 kW
  • Rated Current 1 45,5/54,5 A
  • Fuse 1 50/50 A
  • Frequency 1 50/60 Hz
  • Rated voltage 2 230v
  • Rated Output 2 11,0/13,1 kW
  • Rated Current 2 47,8/57,0 A
  • Fuse 2 50/60 A
  • Frequency 2 50/60 Hz
  • Rated voltage 3 240v
  • Rated Output 3 12,0/14,3 kW
  • Rated Current 3 50,5/59,5 A
  • Fuse 3 50/60 A
  • Frequency 3 50/60 Hz
  • Phases 1/N/PE
  • Temperature Adjustment Off, 20-60 °C
  • Specific resistance ρ15 ≥ 1100  Ω cm
  • Specific conductivity σ15 ≤ 910 μS/cm
  • Energy efficiency class A
  • Colour white
  • IP-Rating IP24
  • Weight 3,20 kg
