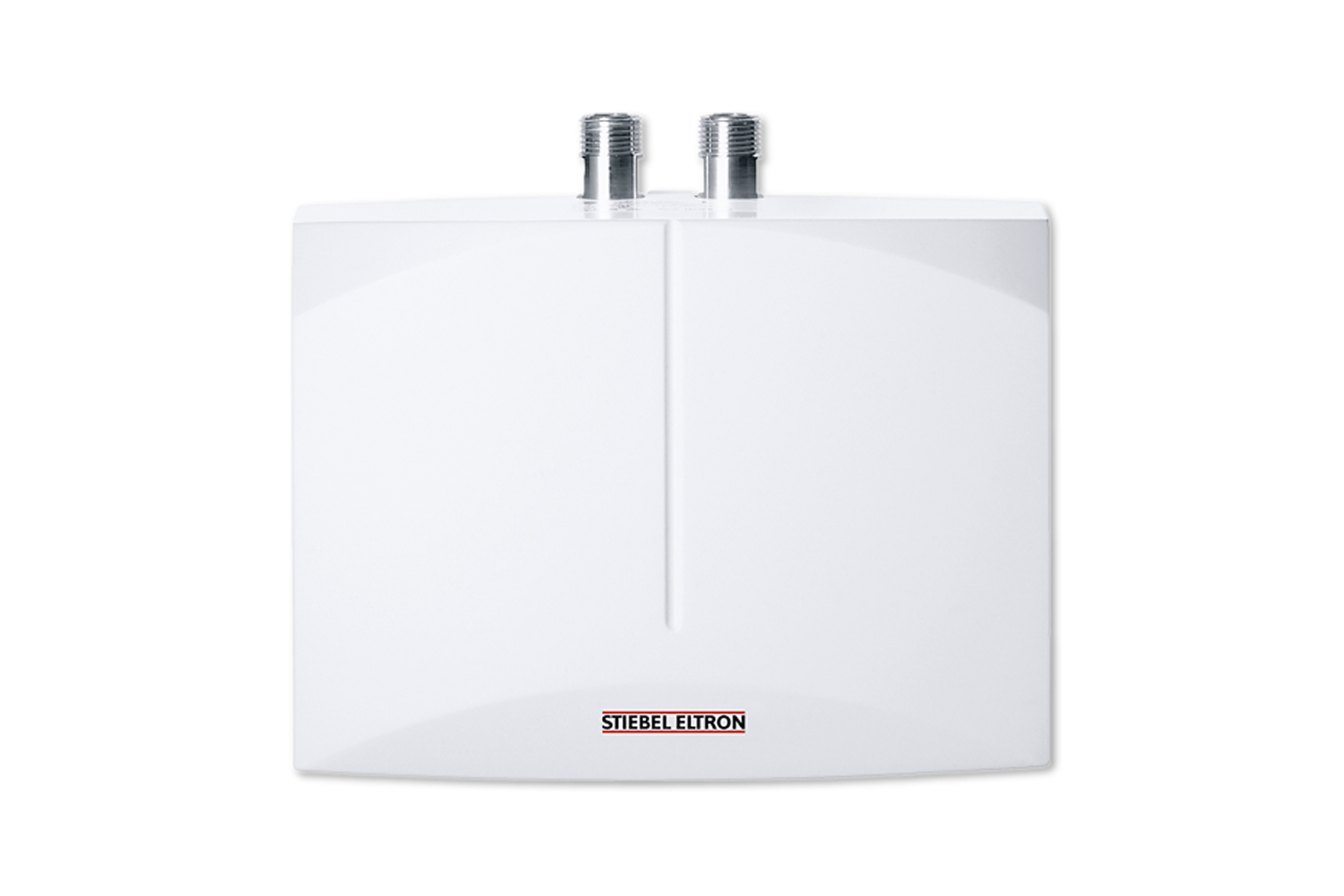

STIEBEL ELTRON mini instantaneous water heater DEM 6

Part Ref: 231215


  • Electronically controlled mini instantaneous water heater with 5.7 kW output
  • Accurate temperature delivery up to the maximum output
  • For supplying a single hand washbasin with maximum efficiency
  • Temperature limit adjustable between 30 °C and 50 °C approx.
  • No standby or distribution losses
  • Suitable for oversink and undersink installation with a single appliance
  • Can be used with commercially available taps
Categories: , ,
Manufacturer:

Asset 1

Description

Wherever smaller volumes of warm water are frequently required, the mini electronic instantaneous water heater DEM is the perfect choice. This appliance delivers water at the electronically controlled set temperature without having to overcome long supply lines with resulting line losses. There are also none of the common water and energy losses resulting from manual temperature adjustment. Consequently, the DEM electronic is ideally suited to washbasins, where a constant outlet temperature is preferred. The appliance can be mounted undersink or oversink; connection to the 230 V mains is also easily accomplished.


Technical Details

Type

Product Number

231215

Rated output

5,7 kW

Height

143 mm

Width

190 mm

Depth

82 mm

Technical data

Rated voltage 1

200 V

Rated output 1

4,3 kW

Rated current 1

21,6 A

Fuse 1

25 A

Frequency 1

50/60 Hz

Rated voltage 2

220 V

Rated output 2

5,2 kW

Rated current 2

23,6 A

Fuse 2

25 A

Frequency 2

50/60 Hz

Rated voltage 3

230 V

Rated output 3

5,7 kW

Rated current 3

24,7 A

Fuse 3

25 A

Frequency 3

50/60 Hz

Phases

1/N/PE

Temperature adjustment

30-50 °C

Water connection

G 3/8 A

Specific resistance ρ15 ≥ (at ϑcold ≤25 °C)

1000 Ω cm

Specific conductivity σ15 ≤ (at ϑcold ≤25 °C)

1000 μS/cm

Specific resistance ρ15 ≥ (at ϑcold ≤50 °C)

1300 Ω cm

Specific conductivity σ15 ≤ (at ϑcold ≤50 °C)

770 μS/cm

Energy efficiency class

A

IP-Rating

IP25

Colour

white

Weight

1,7 kg
