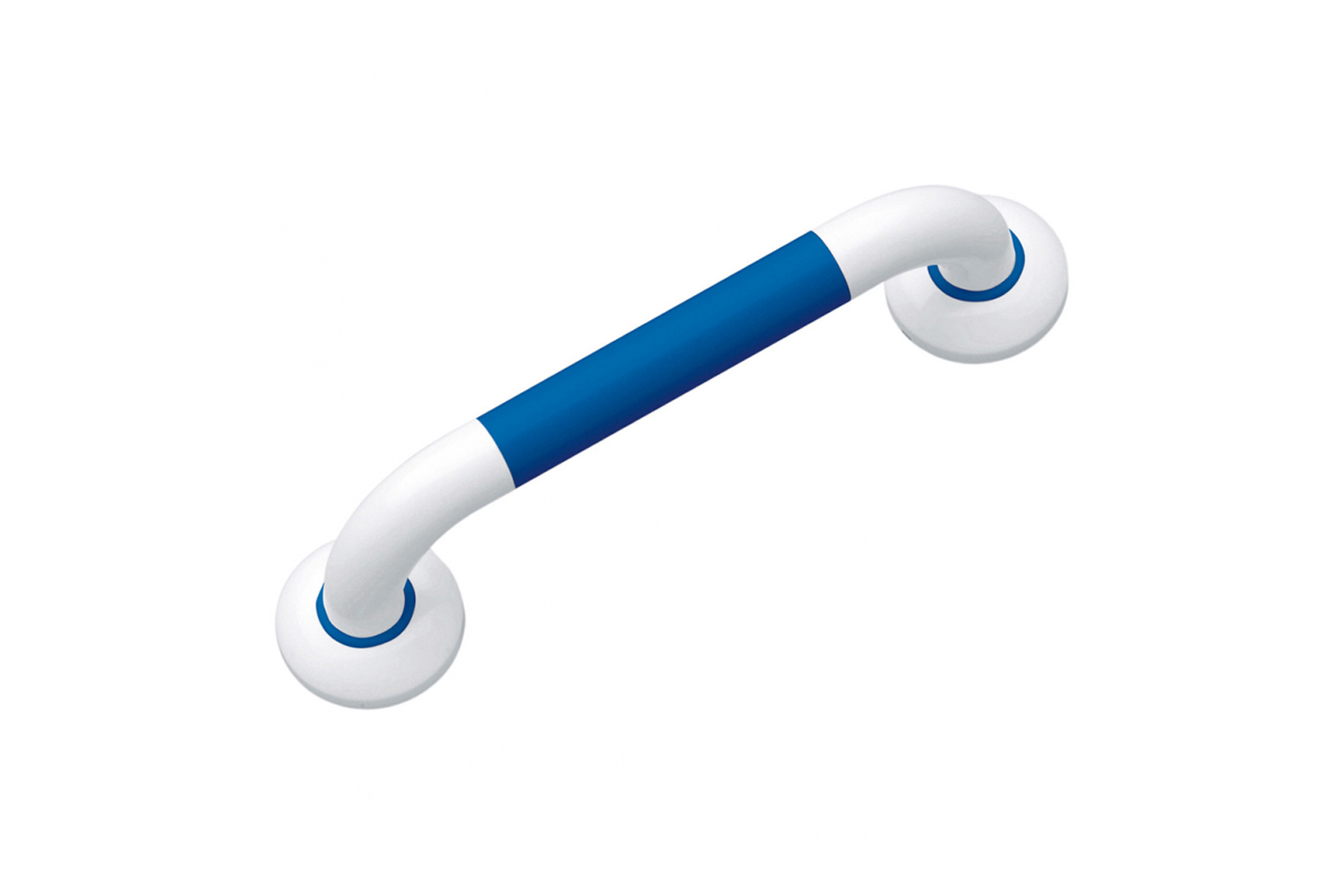

Description
Product advantages
- Composite material: White synthetic resin + aluminium profile. Tube Ø 33 mm.
- Blue (RAL 5002) flange border and central body.
- Concealed fixings.
- Stainless steel fixing screws included.
File | File size |
---|---|
fiche_technique_046133 mp brand | 731 KB |
Material | Polyalu |
Color | White & Blue |
Dimensions | 300 mm |
Gross weight | 0.580 kg |
Packaging | Plastic protection bag |
Maximum Weight Capacity | 150 kg |
Laboratory tests | 225 kg |
Guarantee | 10 years |
Gencod | 3563390461334 |
Custom code | 7615200000 |
Spare Parts | Ref. 046100, Polyalu cover plate. Ref. 046101, Bag of 3 stainless steel screws. Ref. 046288, Flange, cover plate and fixings. |
Recommended height for the horizontal part : 800 mm from the ground. Grab bars provide support and added safety if properly fitted in accordance with our technical instructions. Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.
IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning.
CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
