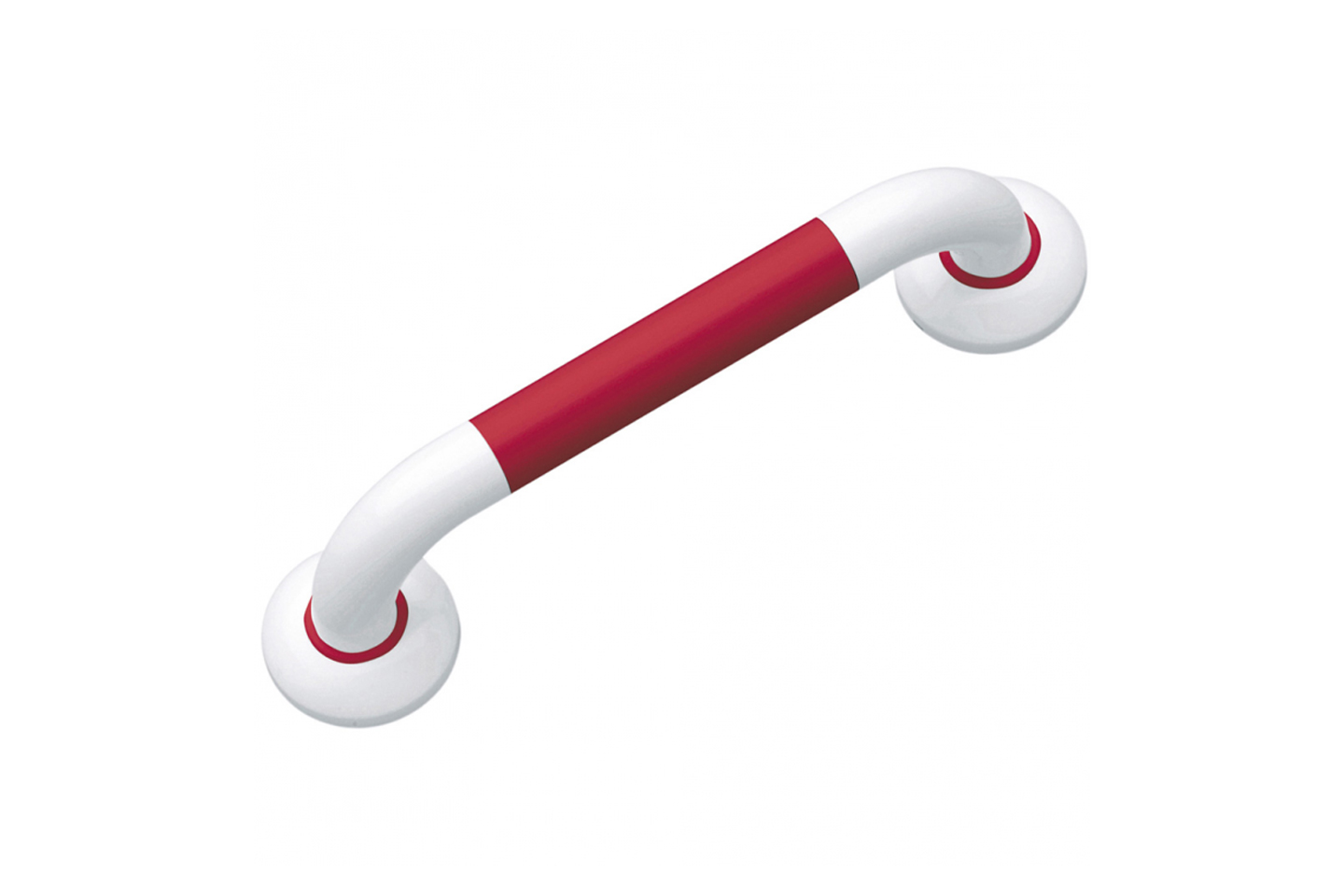

Straight grab bar, 300 mm, White & Red Polyalu, tube Ø 33 mm

Part Ref: 046132


Asset 1

Description

Product advantages

  • Composite material: White synthetic resin + aluminium profile. Tube Ø 33 mm.
  • Red (RAL 3003) flange border and central body.
  • Concealed fixings.
  • Stainless steel fixing screws included.


Downloads

File File size
pdf fiche_technique_046132 660 KB

Technical Details

Material Polyalu
Color White & Red

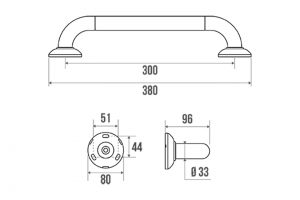

Dimensions 300 mm
Gross weight 0.580 kg
Packaging Plastic protection bag
Maximum Weight Capacity 150 kg
Laboratory tests 225 kg
Guarantee 10 years
Gencod 3563390461327
Custom code 7615200000
Spare Parts Ref. 046100, Polyalu cover plate. Ref. 046101, Bag of 3 stainless steel screws. Ref. 046288, Flange, cover plate and fixings.



Recommended height for the horizontal part : 800 mm from the ground. Grab bars provide support and added safety if properly fitted in accordance with our technical instructions. Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.



IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning.

CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
