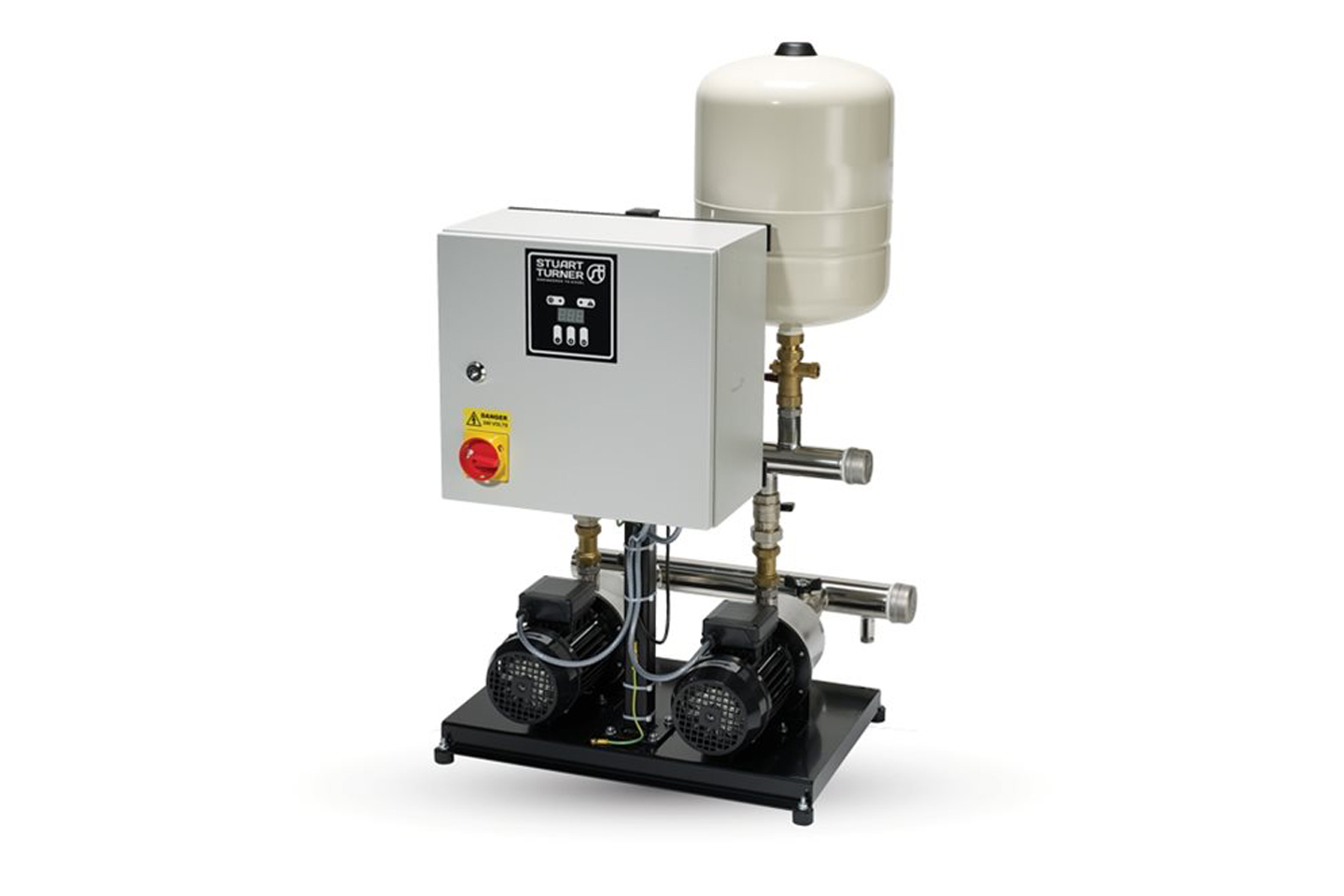

The Aquaboost ABB 0305 2H-SPC/M Horizontal Booster Set offers variable speed twin pump units capable of boosting cold water at up to 160 litres per minute or up to 5.5 bar pressure in light commercial applications.
Aquaboost booster sets can be configured for duty-assist or duty-standby modes.
| Product Code | 47112 |
| Guarantee | 1 year |
| WRAS status | Approved materials |
| Approvals | CE |
| Pressure vessel (litres / bar) | 24 |
| Maximum head – nominal closed valve | 55 metres |
| Maximum flow rate | 10 m³/h (160 l/min) |
| Inlet connection | G 2 M |
| Number of pumps | 2 |
| Pump type | Multistage centrifugal (horizontal) |
| Noise range dB(A) | < 70 dB(A) |
| Power supply (VAC/PH/HZ) | 230 V a.c. / 1 / 50Hz |
| Power consumption – P1 (Watts) | 0.75 kW (per pump) |
| Current – full load (Amps) | 4.4 Amps (per pump) |
| Fuse rating (Amps) | 10 Amps (per pump) |
| Enclosure protection | IP55 |
| Width | 625 mm |
| Depth | 700 mm |
| Height | 1525 mm |
| Weight – including fittings | 90 Kg |
| GTIN | 5050400471127 |
