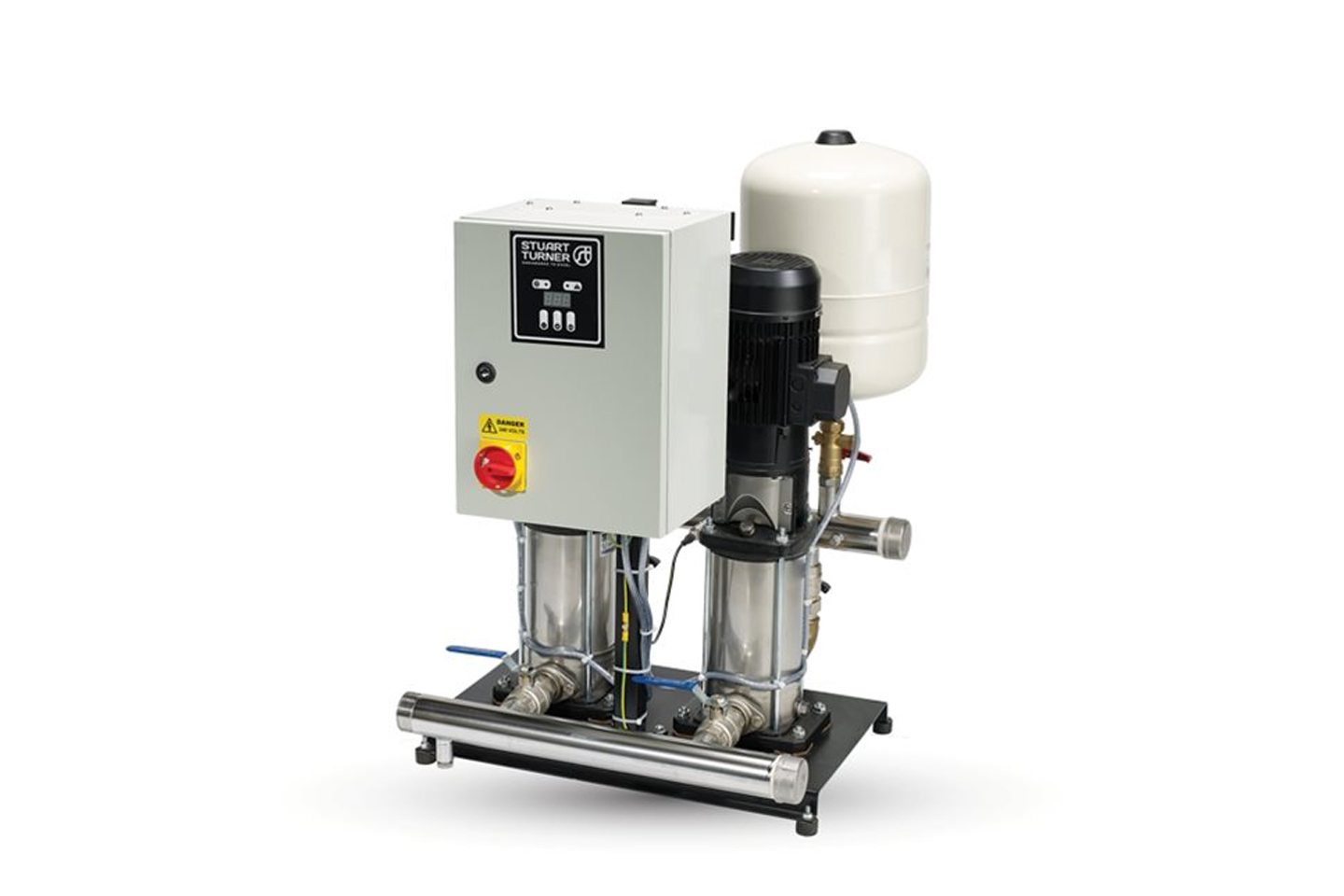

The Aquaboost ABB 0306 2V-SPC/M Vertical Booster Set offers variable speed twin pump units capable of boosting cold water at up to 150 litres per minute or up to 4.5 bar pressure in light commercial applications.
Aquaboost booster sets can be configured for duty-assist or duty-standby modes.
| Product Code | 47118 |
| Guarantee | 1 year |
| WRAS status | Approved materials |
| Approvals | CE |
| Pressure vessel (litres / bar) | 24 |
| Maximum head – nominal closed valve | 45 metres |
| Maximum flow rate | 9 m³/h (150 l/min) |
| Inlet connection | G 1½ M |
| Number of pumps | 2 |
| Pump type | Multistage centrifugal (vertical) |
| Noise range dB(A) | < 70 dB(A) |
| Power supply (VAC/PH/HZ) | 230 Va.c. / 1 / 50Hz |
| Power consumption – P1 (Watts) | 0.55 kW (per pump) |
| Current – full load (Amps) | 2.6 Amps (per pump) |
| Fuse rating (Amps) | 10 Amps (per pump) |
| Enclosure protection | IP55 |
| Width (mm) | 600 |
| Depth (mm) | 650 |
| Height (mm) | 1250 |
| Weight – including fittings (Kg) | 110 |
| GTIN | 5050400471189 |
