Description

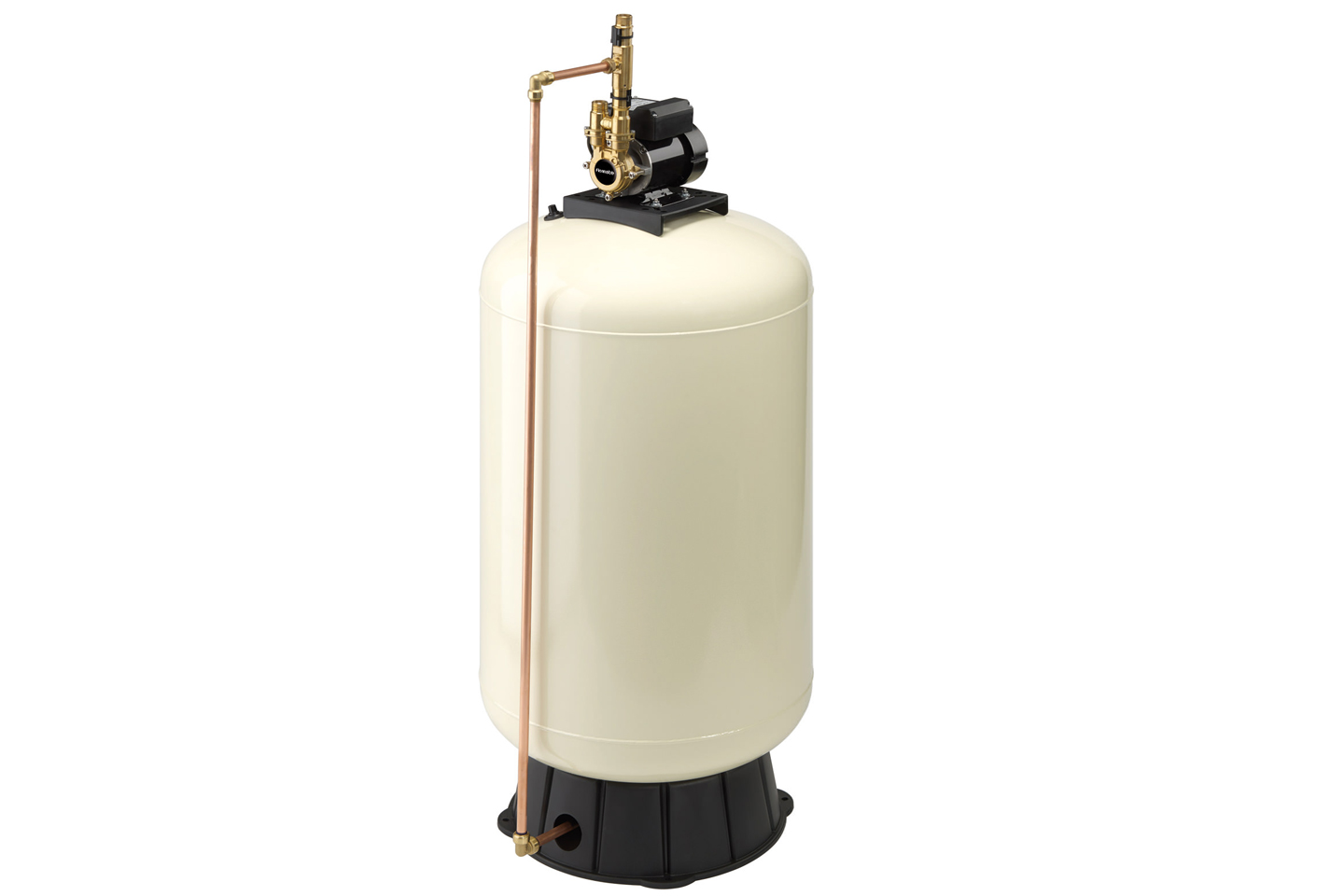

Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 30 litres/minute flow at 3.0 bar pressure, dependant on the chosen pressure vessel variant, to multiple outlets within the property, up to the preset cut-in limit at which time the system will deliver 12 litres/minute until demand ends and the pressure vessel recharges.
Application
- Suitable for higher occupancy properties with two bathrooms or more, Flomate Mains Boost Extra 100 requires no on-site commissioning and fits neatly within a standard 600 mm kitchen larder unit.
Key Features
- 3 year guarantee
- Output flow rate up to 18 litres/minute
- Increases mains water pressure up to 3.2 bar
- 100 litre pressure vessel
- Quiet operation
- WRAS approved product
- Built-in bypass
- Automatic switching
- Dry run protection
- Continuously rated
- Robust brass construction
- Patent protected
Technical Details
| General |
| Product code |
46635 |
| Guarantee |
3 years |
| Features |
| Pump type |
Peripheral |
| Mechanical seal |
EPDM / PTFE / Al. Oxide |
| Flexible hoses |
2 |
| Diaphragm tank size |
100 litre |
| Diaphragm tank water capacity |
50 litre |
| Dry run protection |
|
| Materials |
| Pump body |
Brass |
| Impeller |
Brass |
| Performance |
| Maximum head (closed valve) |
3.2 bar |
| Maximum flow |
18 l/min |
| Maximum working pressure* |
450 kPa (4.5 bar) |
| Maximum ambient air temperature |
40 °C |
| Min / Max water temperature |
Min 4 °C / Max 35 °C |
| Flow switch sensitivity (approx) |
0.6 l/min |
| Connections |
| Pump connections |
G ¾ male |
| Flexible hoses |
| Connections |
G ¾ female x 15 mm push-in 200 mm long |
| Motor |
| Type |
Induction, auto-reset thermal trip |
| Duty rating |
Continuous (S1) |
| Electrical |
| Power supply/phase/frequency |
230 V a.c./ 1 / 50 Hz |
| Current (full load) |
1.7 Amps |
| Power consumption |
365 Watts |
| Fuse rating |
5 Amps |
| Power cable (pre-wired) |
1.5 metres |
| Physical |
| Enclosure protection |
IPX4 |
| Length |
473 mm |
| Width |
432 mm |
| Height (excluding hoses) |
1134 mm |
| Dry weight (including fittings) |
24.5 Kg |
| Filled weight (maximum) |
72.5 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
