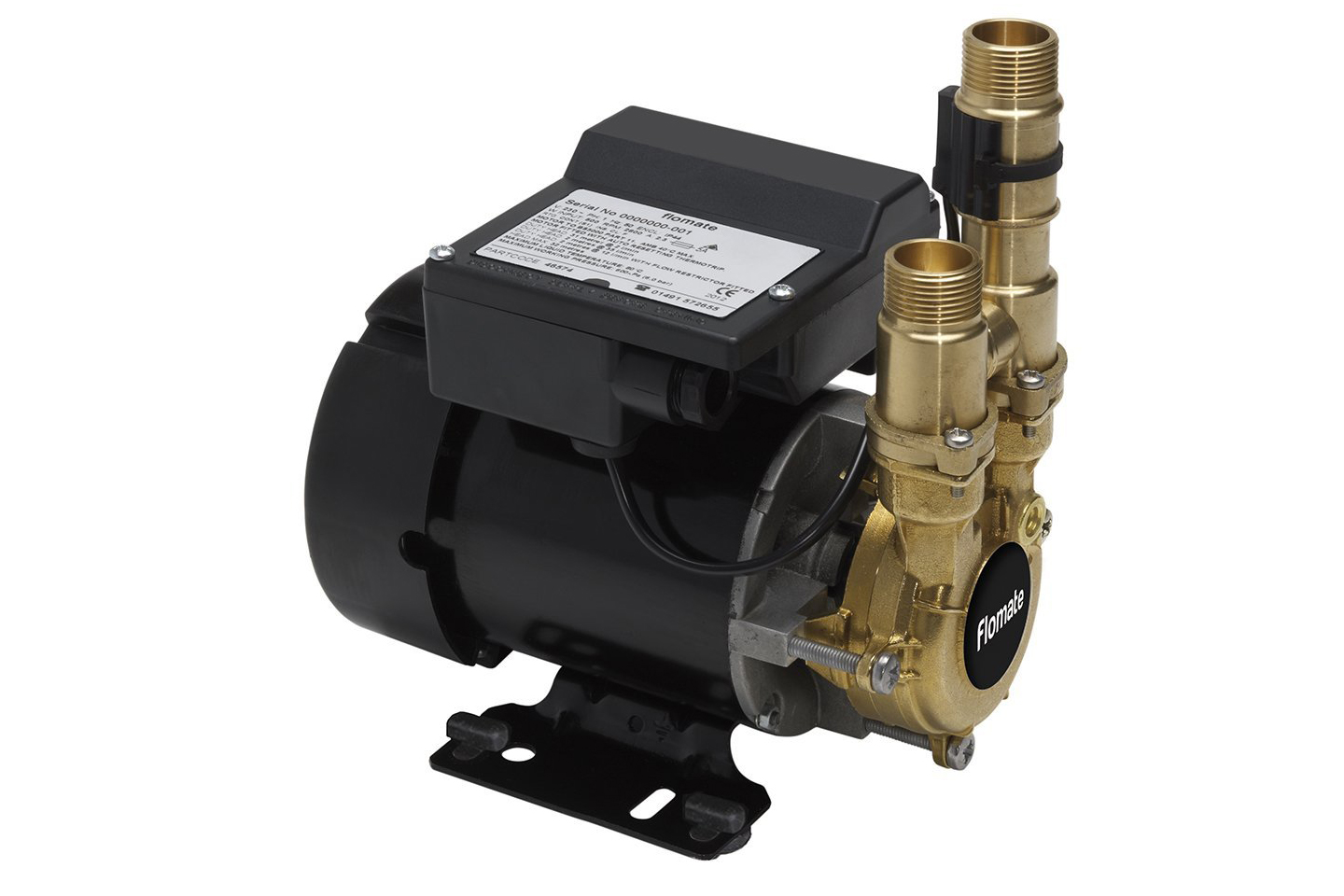

Stuart Turner Flomate Mains Boost – Low water pressure pump MBF12

Part Ref: 46574


Suitable for low occupancy properties with typically one bathroom.  Flomate Mains Boost pump is designed to be connected directly to the incoming mains and will deliver an additional 1.5 bar pressure to the existing mains pressure and a maximum flow rate of 12 litres minute.

Categories: ,
Manufacturer:

Asset 1

Description

The pump will start automatically when a flow rate of 0.6 litres per minute or more exists.

The pump also features a built-in bypass, meaning that when the mains pressure exceeds 1.5 bar, the additional performance is not restricted.

Application

  • At times when there is insufficient mains water pressure Flomate is designed to ensure that the pump will deliver an additional 1.5 bar to any existing mains pressure at a maximum flow rate of 12 l/min

Key Features

  • 3 year guarantee
  • Maximum output flow rate 12 litres/minute
  • Increases mains water pressure by 1.5 bar
  • Compact size
  • Quiet operation
  • WRAS approved product
  • Built-in bypass
  • Automatic switching
  • Dry run protection
  • Continuously rated
  • Robust brass construction
  • Patent protected

Technical Details

General
Product code 46574
Guarantee 3 years
WRAS approval 1210040
Features
Pump type Peripheral
Mechanical seal EPDM / PTFE / Al. Oxide
Anti vibration feet
Dry run protection
Materials
Pump body Brass
Impeller Brass
Performance
Maximum head (closed valve) 3.2 bar
Maximum flow 12 l/min
Maximum working pressure* 600 kPa (6 bar)
Maximum ambient air temperature 40 °C
Min / Max water temperature Min 4 °C / Max 35 °C
Flow switch sensitivity (approx) 0.6 l/min
Connections
Pump connections G ¾ male
Motor
Type Induction, auto-reset thermal trip
Duty rating Continuous (S1)
Electrical
Power supply/phase/frequency 230 V a.c./ 1 / 50 Hz
Current (full load) 1.5 Amps
Power consumption 340 Watts
Fuse rating 5 Amps
Power cable (pre-wired) 1.5 metres
Physical
Enclosure protection IPX4
Length 210 mm
Width 130 mm
Height (excluding hoses) 231 mm
Weight (including fittings) 5.2 Kg

* The maximum pressure that can be applied to the pump under any installation conditions.
