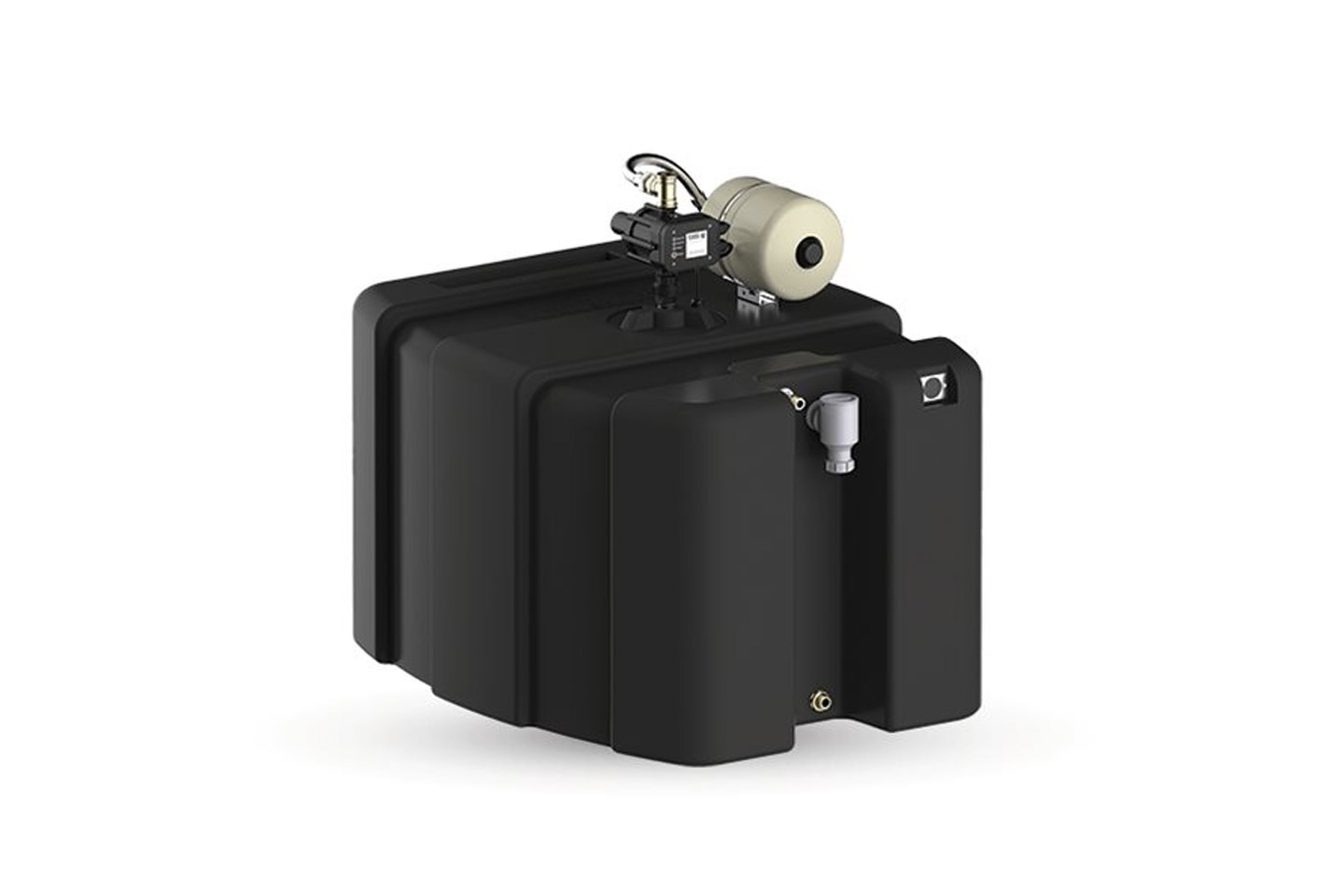

Name: Stuart Turner Mainsboost iTank MBI 500S
SKU: 47127

Description

Integrated Booster System

File	File size
Mainsboost-iTank-IG	2 MB
Mainsboost-iTank-Brochure MP	3 MB

Technical Details

Product Code	47127
General
Guarantee	1 year
Approvals	CE
Features
Pump control system	Fixed speed / control module
Pressure vessel	8 litres / 10 bar
Dry run protection	X
System check valve	X
Outlet flexible hose	X
Performance
Maximum head – closed valve	3.5 bar / 35 metres
Maximum flow	88 l/min
Ambient air temperature	Min 4 oC – Max 30 oC
Water tank
Nominal water tank size	618 litres
Usable water capacity	503 litres
Float valve type	Fluidmaster Pro 75B
Min / Max inlet valve pressure	0.2 bar (10 bar)
Water tank fil rate	4.2 l/min @ 1 bar
Water tank air gap	Type AC
Fluid category	CAT 3
Connections
Inlet connection	½ “
Outlet connection	1 ” BSP
Outlet flexible hose	1 ” BSP x 230 mm
Overflow	1¼ ” compression
Drain port	¾ ” BSP M
Gravity secondary outlet	1 ” BSP F
Materials
Water tank	Polyethylene
Pump
Pump type	Submersible multistage centrifugal
Motor type	Induction, thermal protection
Duty rating	Continuous (S1)
Electrical
Power supply (Vac/Ph/Hz)	3.7 A 230 V a.c./1/50 Hz
Power consumption – P1	774 Watts
Power cable length	13 metres (pre-wired)
Enclosure protection	IP65 (control module)
Physical
Width	920 mm
Depth	1185 mm
Height – excluding hoses	1033 mm
Weight – including fittings	54 Kg
Weight – filled	557 Kg
