Description

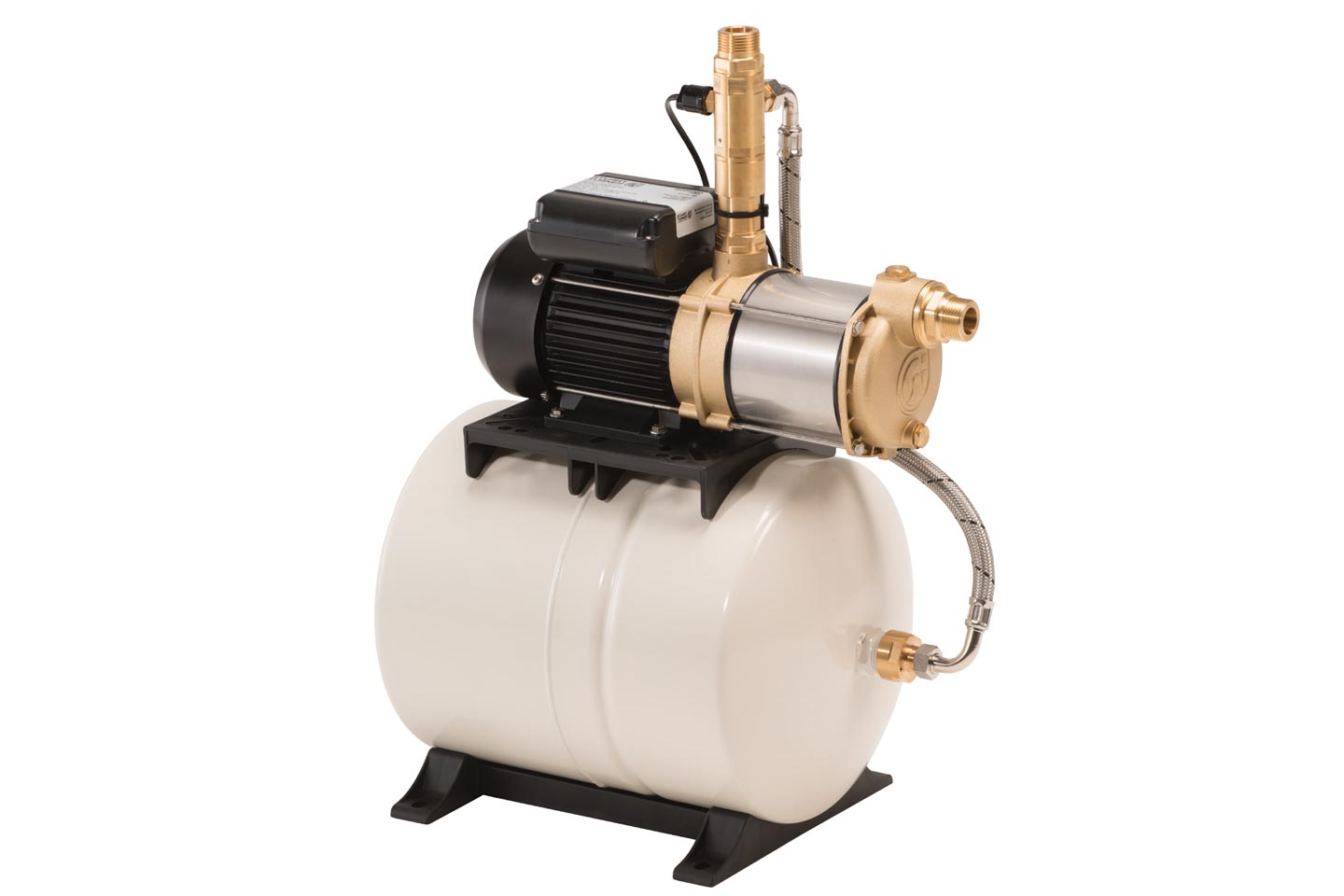

The Monsoon Extra pump is mounted onto a WRAS approved 24 litre diaphragm tank providing a buffer of pressurised stored water. Ideally suited to boost stored cold water supplies from a storage tank to un-vented hot water cylinders/combination boilers.
Application
- In the home Monsoon Extra Pressure Sets are typically used to boost cold water supplies to Combination Boiler or Pressurised Un-vented stored hot water systems
- In light commercial applications they can be used to boost cold water supplies to laundries, kitchens, hotels & sports/leisure facilities
Technical Details
Technical Specification
| General |
| Product code |
46602 |
| Guarantee |
3 years |
| WRAS approval |
Approved materials |
| Features |
| Pump type |
Centrifugal |
| Mechanical seal |
EPDM / Carbon / Ceramic |
| Inlet strainer(s) |
|
| Flexible hoses |
2 |
| Run on timer |
3 sec |
| Dry run protection |
|
| Diaphragm tank size |
24 litres |
| Diaphragm tank water capacity |
12 litres |
| Materials |
| Pump body |
Brass / Stainless steel |
| Impeller |
Stainless steel |
| Performance |
| Maximum head (closed valve) |
3.6 bar |
| Performance @ 45 l/min |
3.3 bar |
| Performance @ 90 l/min |
2.0 bar |
| Maximum flow |
121 l/min |
| Minimum static inlet pressure |
1 metre |
| Maximum static inlet pressure |
10 metres |
| Maximum static outlet pressure |
13 metres |
| Maximum working pressure* |
600 kPa (6 bar) |
| Maximum ambient air temperature |
40 °C |
| Min / Max water temperature |
Min 4 °C / Max 35 °C |
| Flow switch sensitivity (approx) |
1.0 l/min |
| Pressure vessel air pre-charge |
1.8 bar (26.1 psi) |
| Cut in flow |
1 l/min |
| Cut in pressure |
180 kPa (1.8 bar) |
| Connections |
| Pump connections |
G 1 male |
| Flexible hoses |
| Connections |
G 1 male x G 1 female x 300 mm long |
| Motor |
| Type |
Induction type, thermally protected |
| Duty rating |
Continuous (S1) |
| Electrical |
| Power supply/phase/frequency |
230 V a.c./ 1 / 50 Hz |
| Current (full load) |
5.1 Amps |
| Power consumption |
1136 Watts |
| Fuse rating |
13 Amps |
| Power cable (pre-wired) |
1.5 metres |
| Physical |
| Enclosure protection |
IPX5 |
| Length |
521 mm |
| Width |
280 mm |
| Height (excluding hoses) |
647 mm |
| Weight (including fittings) |
18.5 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
