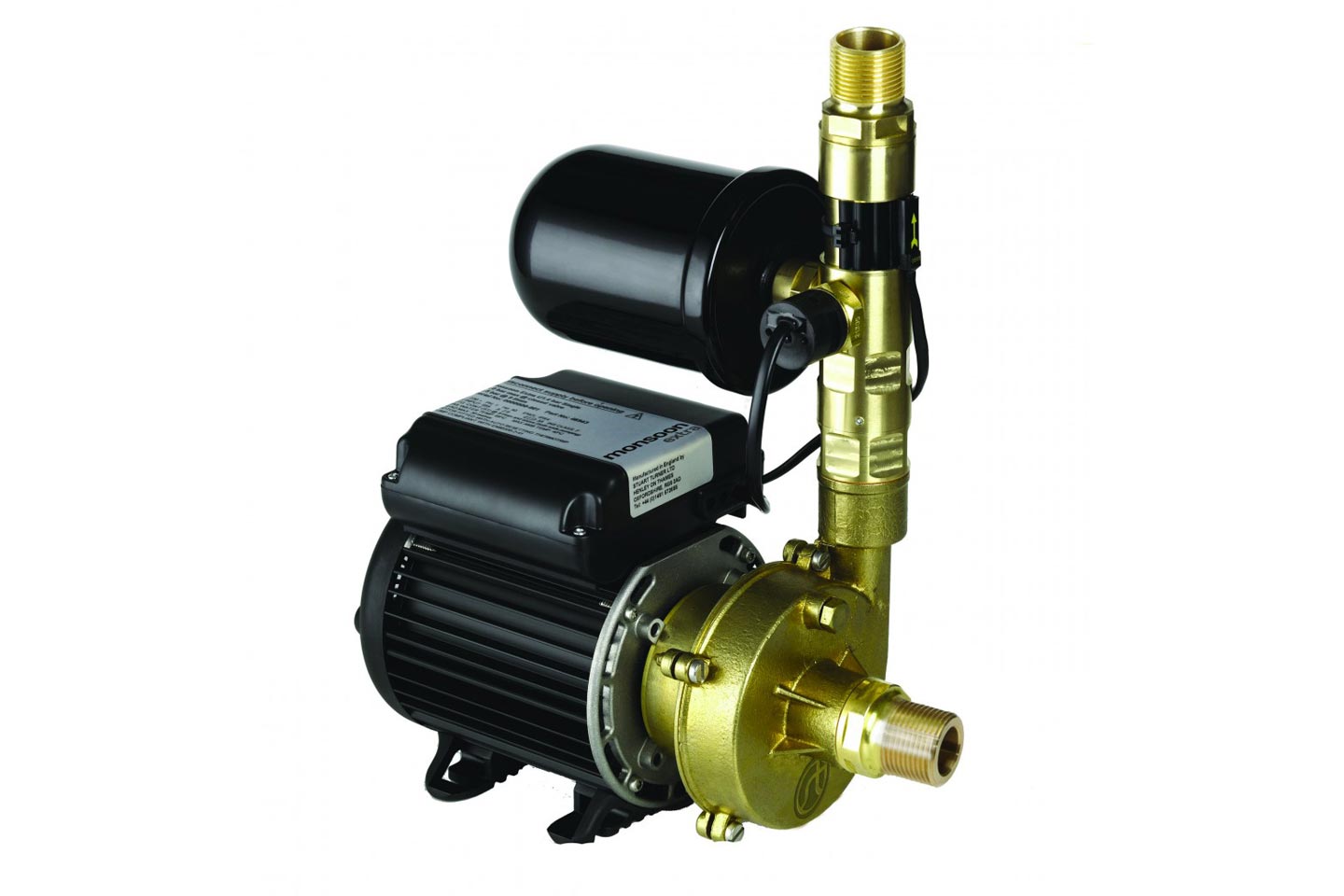

Monsoon Extra Universal 1.4 bar Single is a quality brass centrifugal single-stage booster pump, designed for larger installations that require higher flow rates.
It’s high performance makes it an ideal choice for high demand, multiple outlet applications including larger houses, small hotels and leisure facilities where multiple showers would be a requirement.
| General | |
| Product code | 46349 |
| Guarantee | 3 years |
| WRAS approval | Approved material |
| Features | |
| Pump type | Centrifugal |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 2 |
| Run on timer | 3 sec |
| Dry run protection | |
| Materials | |
| Pump body | Brass |
| Impeller | Plastic |
| Performance | |
| Maximum head (closed valve) | 1.4 bar |
| Performance @ 45 l/min | 1.2 bar |
| Performance @ 90 l/min | 0.7 bar |
| Maximum flow | 120 l/min |
| Minimum Static inlet pressure | 1 metre |
| Maximum static inlet pressure | 6 metres |
| Maximum static outlet pressure | 6 metres |
| Maximum working pressure* | 600 kPa (6 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity | 1.0 l/min |
| Pressure vessel air pre-charge | 0.9 bar (13 psi) |
| Cut in flow | 1 l/min (approx) |
| Cut in pressure | 80 kPa (0.8 bar) |
| Connections | |
| Pump connections | G 1 male |
| Flexible hoses | |
| Connections | G 1 male x G 1 female x 300 mm long |
| Motor | |
| Type | Induction type, thermally protected |
| Duty rating | Continuous (S1) |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.8 Amps |
| Power consumption | 415 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IPX4 |
| Length | 273 mm |
| Width | 159 mm |
| Height (excluding hoses) | 338 mm |
| Weight (including fittings) | 8.7 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.
