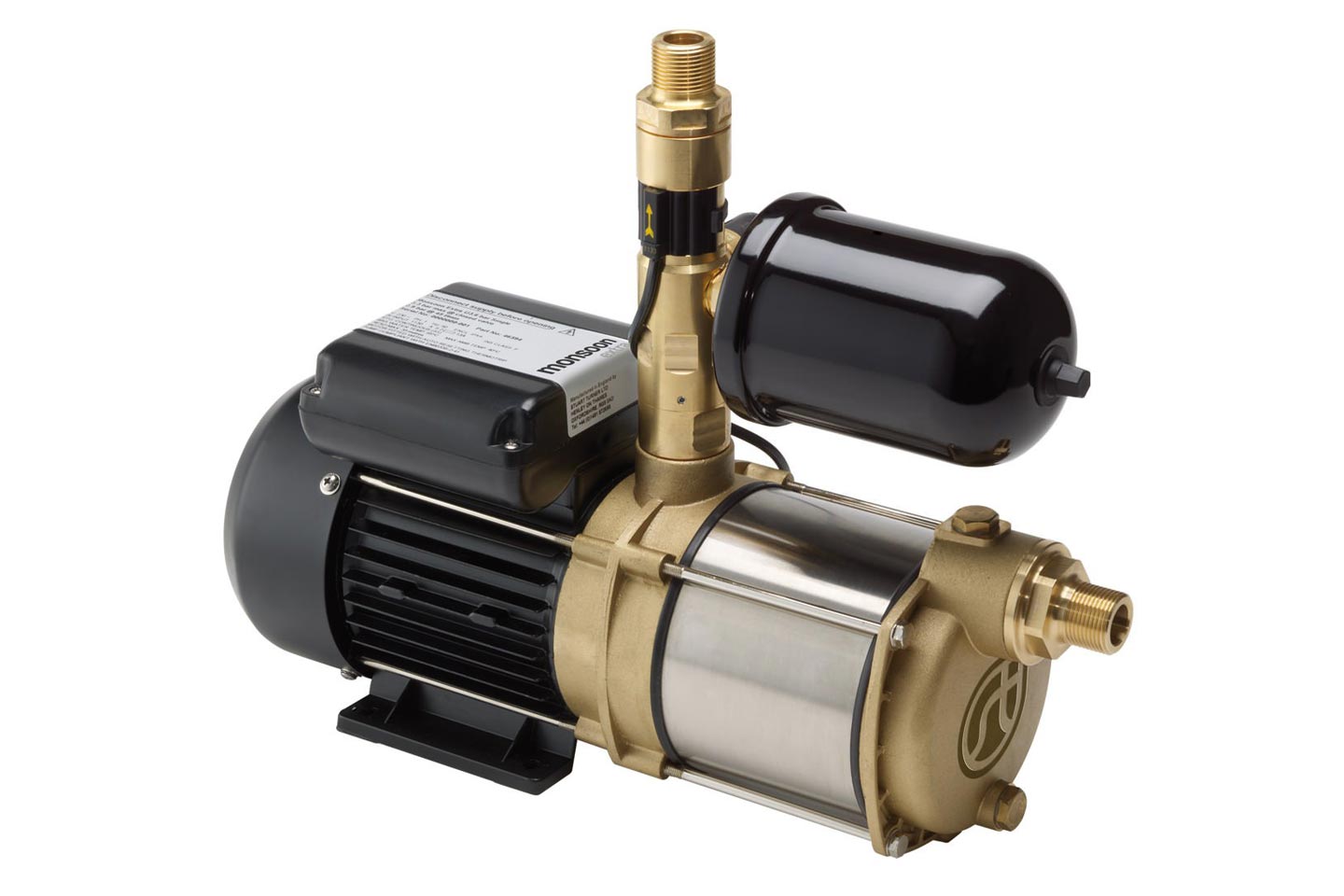

Description
It’s high performance makes it an ideal choice for high demand, multiple outlet applications including larger houses, small hotels and leisure facilities where multiple showers would be a requirement.
Application
- Designed to provide a pressurised water supply from a break tank in either a positive or negative head application.
- Suitable for commercial or domestic use, pumping hot or cold water.
Technical Details
Technical Specification
| General |
| Product code |
46593 |
| Guarantee |
3 years |
| WRAS approval |
1601035 |
| Features |
| Pump type |
Centrifugal |
| Mechanical seal |
EPDM / Carbon / Ceramic |
| Anti vibration feet |
|
| Inlet strainer(s) |
|
| Flexible hoses |
2 |
| Run on timer |
3 sec |
| Dry run protection |
|
| Materials |
| Pump body |
Brass / stainless steel |
| Impeller |
Stainless steel |
| Performance |
| Maximum head (closed valve) |
2.6 bar |
| Performance @ 45 l/min |
2.0 bar |
| Performance @ 90 l/min |
1.2 bar |
| Maximum flow |
120 l/min |
| Minimum static inlet pressure |
1 metre |
| Maximum static inlet pressure |
10 metres |
| Maximum static outlet pressure |
13 metres |
| Maximum working pressure* |
600 kPa (6 bar) |
| Maximum ambient air temperature |
40 °C |
| Min / Max water temperature** |
Min 4 °C / Max 65 °C |
| Flow switch sensitivity |
1.0 l/min |
| Pressure vessel air pre-charge |
2.1 bar (30.5 psi) |
| Cut in flow |
1 l/min (approx) |
| Cut in pressure |
140 kPa (1.4 bar) |
| Connections |
| Pump connections |
G 1 male |
| Flexible hoses |
| Connections |
G 1 male x G 1 female x 300 mm long |
| Motor |
| Type |
Induction type, thermally protected |
| Duty rating |
Continuous (S1) |
| Electrical |
| Power supply/phase/frequency |
230 V a.c./ 1 / 50 Hz |
| Current (full load) |
3.5 Amps |
| Power consumption |
775 Watts |
| Fuse rating |
13 Amps |
| Power cable (pre-wired) |
1.5 metres |
| Physical |
| Enclosure protection |
IPX5 |
| Length |
394 mm |
| Width |
155 mm |
| Height (excluding hoses) |
312 mm |
| Weight (including fittings) |
12.7 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.
