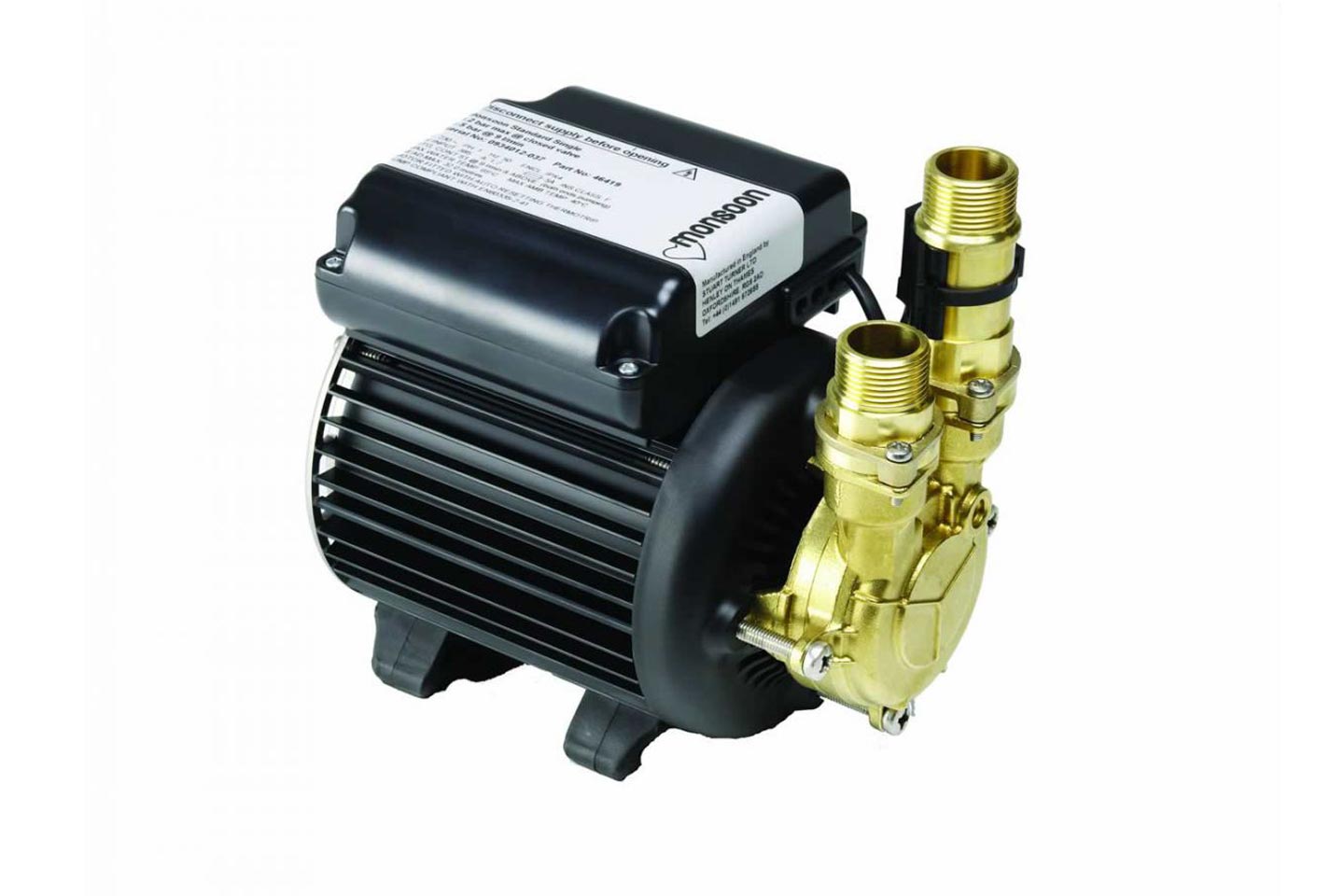

Monsoon Standard 4.5 bar Single pumps are ideal for boosting a water supply in vented systems. Suitable for positive head applications only.
Suitable for domestic use, Monsoon Standard pumps will function under positive head conditions and are suitable for installation into open vented hot and cold water systems.
Monsoon Standard pumps require a flow of just 0.6 l/min through the outlet to start.
| General | |
| Product code | 46420 |
| Guarantee | 5 years |
| WRAS approval | 1404702 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 2 |
| Dry run protection | |
| Materials | |
| Pump body | Brass |
| Impeller | Brass |
| Performance | |
| Maximum head (closed valve) | 4.5 bar |
| Performance @ 9 l/min | 3.5 bar |
| Performance @ 18 l/min | 2.4 bar |
| Maximum flow | 40 l/min |
| Maximum static inlet pressure | 14 metres |
| Maximum working pressure* | 600 kPa (6 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.6 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections (UK model) | G ¾ female x 22 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (ROI model) | G ¾ female x 21 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (Export model) | G ¾ female x G ¾ female 300 mm long |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 2.4 Amps |
| Power consumption | 555 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IPX4 |
| Length | 200 mm |
| Width | 126 mm |
| Height (excluding hoses) | 202 mm |
| Weight (including fittings) | 6.0 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.
