Description

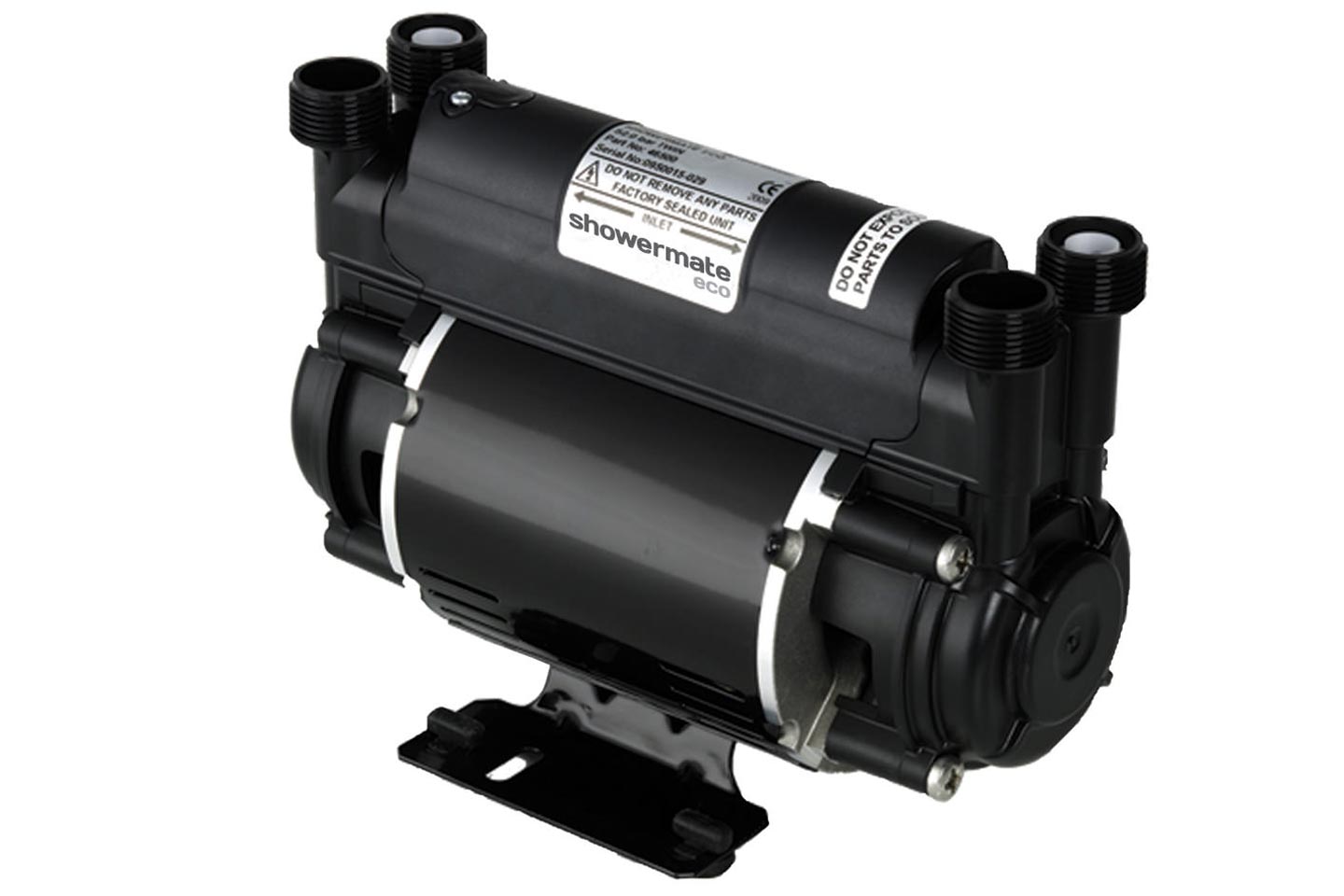

Designed for domestic use only, Showermate eco pumps will function under positive head conditions and are suitable for installation into open vented hot and cold water systems.
Standard pumps require a flow of just 0.8 l/min through the outlet to start.
Application
- Boost hot and cold water supplies equally
- Single function shower
- Bath/basin mixer tap
Technical Details
Technical Specification
General |
Product code |
46502 |
Guarantee |
3 years |
WRAS approval |
1504701 |
Features |
Pump type |
Peripheral |
Mechanical seal |
EPDM / PTFE / Al. Oxide |
Anti vibration feet |
|
Flexible hoses |
4 |
Dry run protection |
|
Materials |
Pump body |
Plastic |
Impeller |
Plastic |
Performance |
Maximum head (closed valve) |
1.5 bar |
Performance @ 9 l/min |
1.1 bar |
Performance @ 18 l/min |
0.6 bar |
Maximum flow |
32 l/min |
Maximum static inlet pressure |
10 metres |
Maximum working pressure* |
300 kPa (3 bar) |
Maximum ambient air temperature |
40 °C |
Min / Max water temperature** |
Min 4 °C / Max 65 °C |
Flow switch sensitivity (approx) |
0.8 l/min |
Connections |
Pump connections |
G ¾ male |
Flexible hoses |
Connections |
G ¾ female x 15 mm push-in
200 mm long
Isolating valves on inlet hoses |
Motor |
Type |
Induction, auto-reset thermal trip |
Duty rating |
Int (S3) 30 mins on / 30 mins off @
9 l/min |
Electrical |
Power supply/phase/frequency |
230 V a.c./ 1 / 50 Hz |
Current (full load) |
1.7 Amps |
Power consumption |
385 Watts |
Fuse rating |
5 Amps |
Power cable (pre-wired) |
1.5 metres |
Physical |
Enclosure protection |
IP22 |
Length |
231 mm |
Width |
132 mm |
Height (excluding hoses) |
166 mm |
Weight (including fittings) |
4.3 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.
