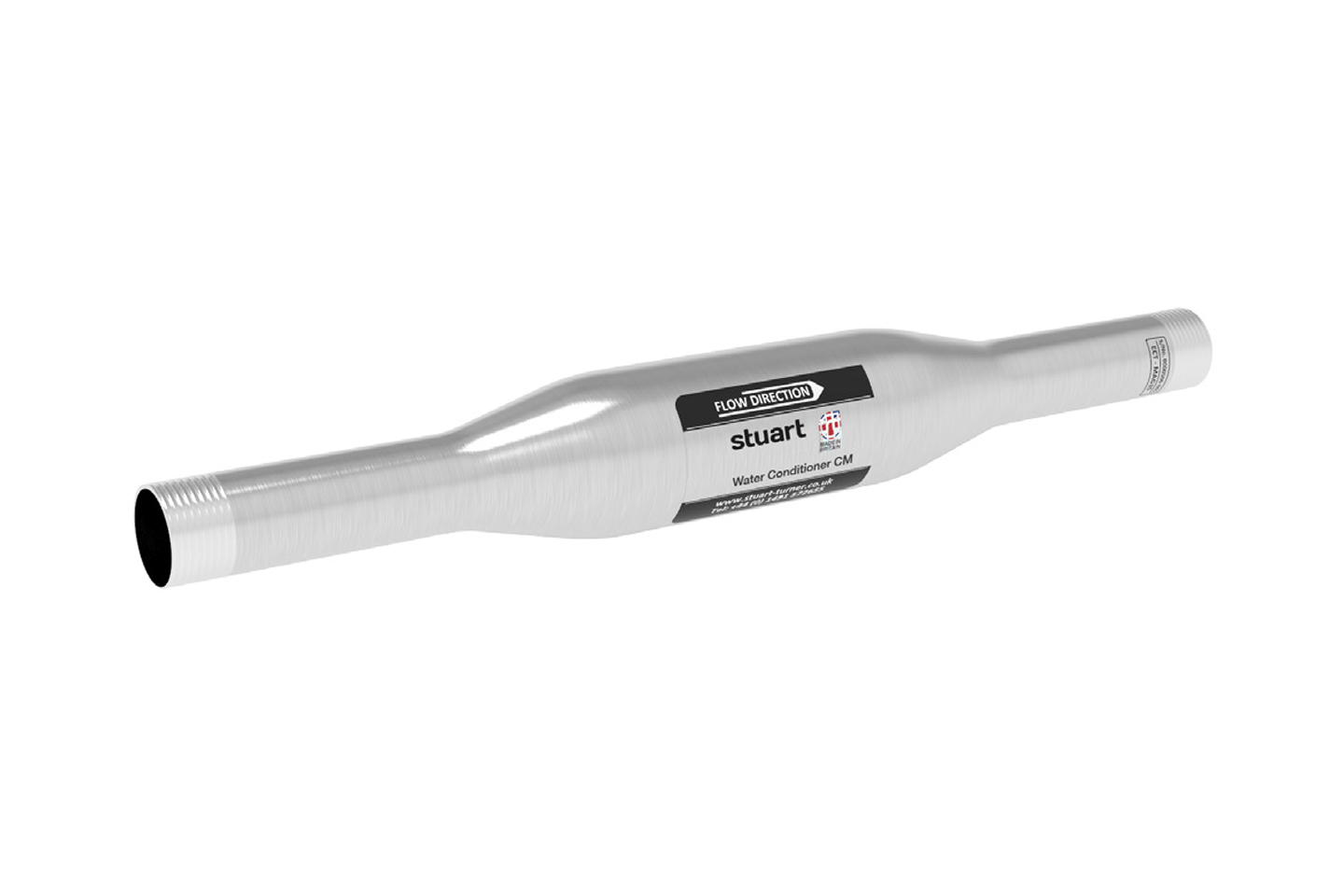

Water Conditioner CM 23-45

Developed specifically for commercial and industrial applications, the Stuart Water Conditioner CM combines a unique catalytic alloy core with an array of powerful rare earth magnets to effectively prevent hard limescale deposits from forming.

This has enabled the development of a range of products suitable for the effective treatment of hard scale in commercial water supply and industrial processing applications.

Description

Features

Prevents limescale build up – maximises appliance efficiency and reduces energy costs
Reduces maintenance requirements, minimising costs and maximising up-time
Maximum pressure drop 2%
Compact design – easy to install in any orientation
Environmentally friendly, does not use chemicals or salts
Treated water is safe to drink
No electrical power required
10 year guarantee
Available in a range of sizes and flow rates

Application

Available in a range of sizes optimised to meet the flow rate requirements of commercial properties, industrial plant and processes
Installed inline with the incoming mains water supply
Stuart Water Conditioner CM products can play an effective role in achieving compliance with Part L of the Building Regulations
Stuart Water Conditioners have an average 15 year active lifespan

Technical Details

Model	Water Conditioner CM23-45 44735
Description	Magnetic/catalytic water conditioner
Connection Size	¾ “
Connection Type	BSP Male
Flow rate range	23-45 l/min
Maximum pressure	16 bar
Body dia.	60mm
Length	400 mm
Weight	4.9 kg

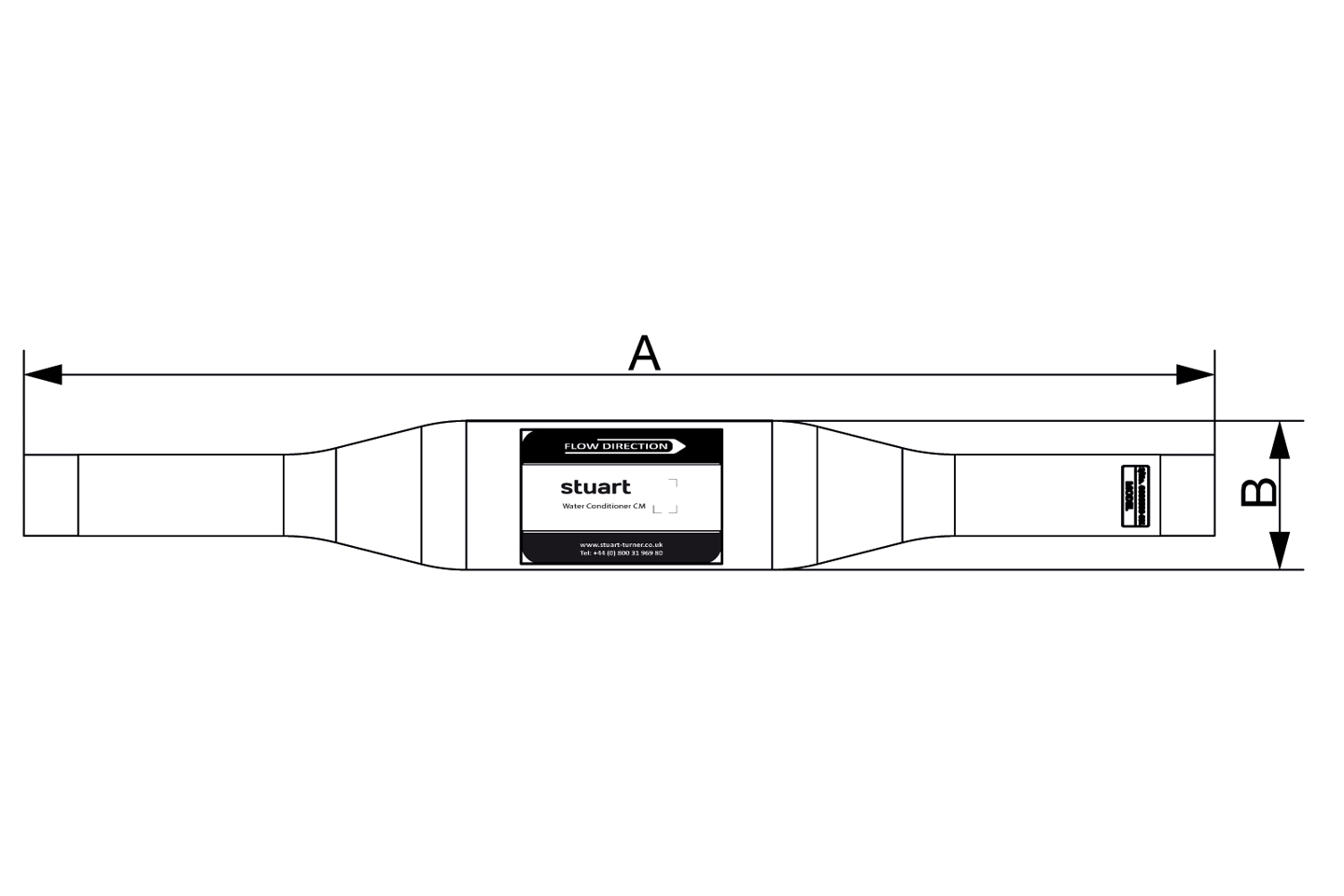

Model	Dim ‘A’	Dim ‘B’
CM23-45	400 mm	60 mm
