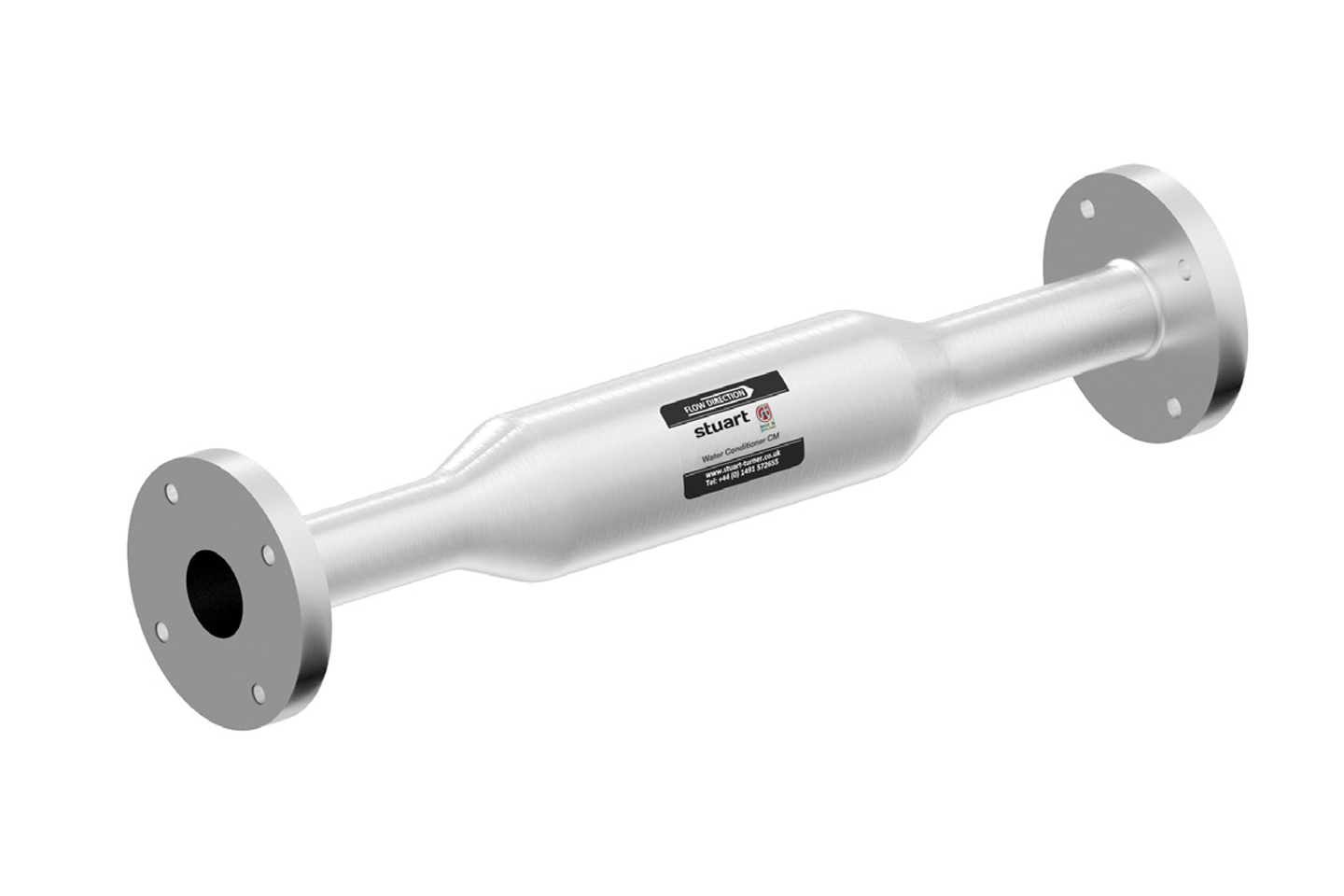

Water Conditioner CM 266-360


Developed specifically for commercial and industrial applications, the Stuart Water Conditioner CM combines a unique catalytic alloy core with an array of powerful rare earth magnets to effectively prevent hard limescale deposits from forming.

This has enabled the development of a range of products suitable for the effective treatment of hard scale in commercial water supply and industrial processing applications.

Category:

Asset 1

Description

Features

  • Prevents limescale build up – maximises appliance efficiency and reduces energy costs
  • Reduces maintenance requirements, minimising costs and maximising up-time
  • Maximum pressure drop 2%
  • Compact design – easy to install in any orientation
  • Environmentally friendly, does not use chemicals or salts
  • Treated water is safe to drink
  • No electrical power required
  • 10 year guarantee
  • Available in a range of sizes and flow rates

Application

  • Available in a range of sizes optimised to meet the flow rate requirements of commercial properties, industrial plant and processes
  • Installed inline with the incoming mains water supply
  • Stuart Water Conditioner CM products can play an effective role in achieving compliance with Part L of the Building Regulations
  • Stuart Water Conditioners have an average 15 year active lifespan

Technical Details

Model  Water Conditioner CM266-360 44730
Description Magnetic/catalytic water conditioner
Connection Size 65 mm
Connection Type PN 16 Flange
Flow rate range 260-360l/min
Maximum pressure 16 bar
Body dia. 114 mm
Length 800 mm
Weight 18.0 kg

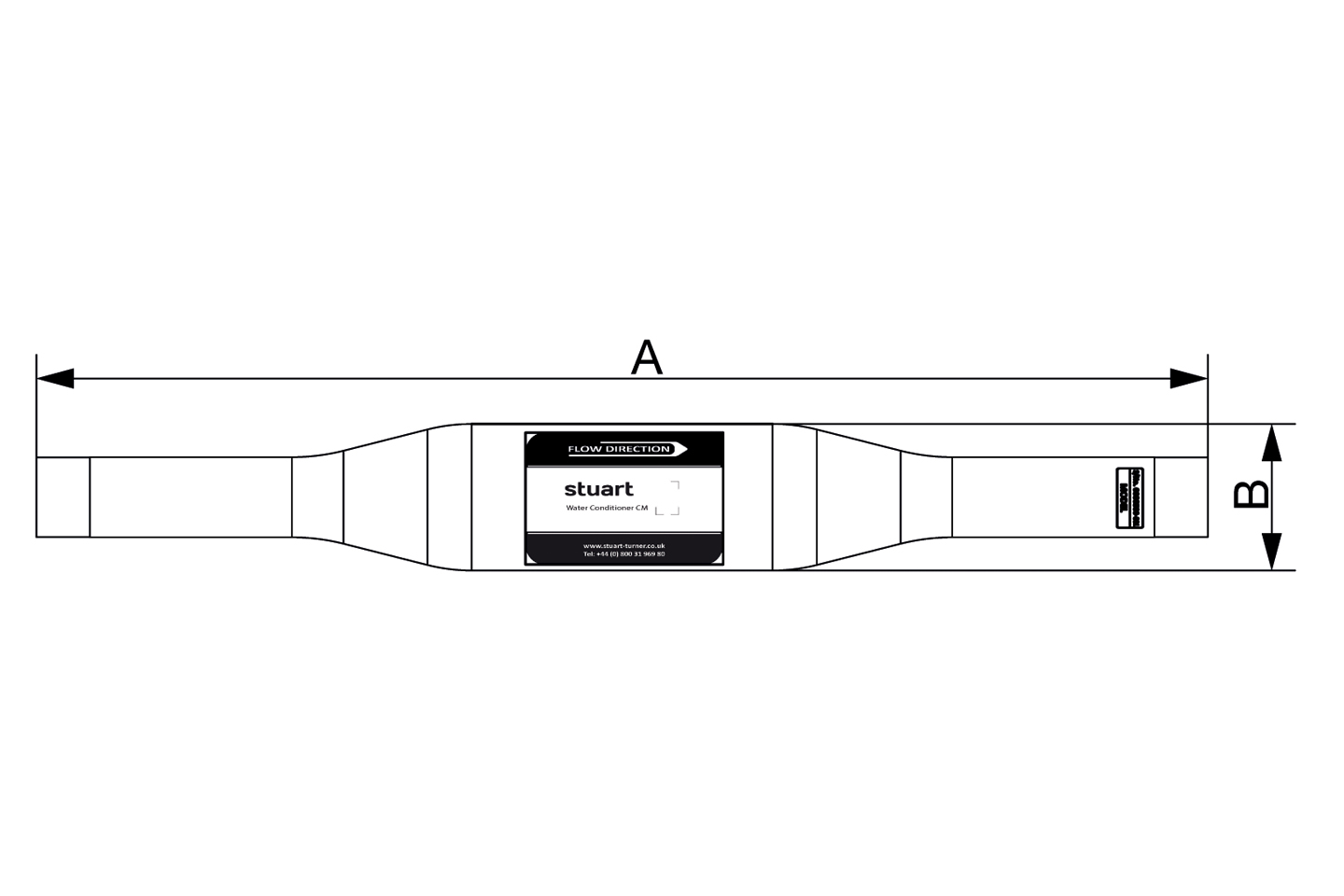

Model  Dim ‘A’  Dim ‘B’
CM266-360  800 mm  114 mm
