Description

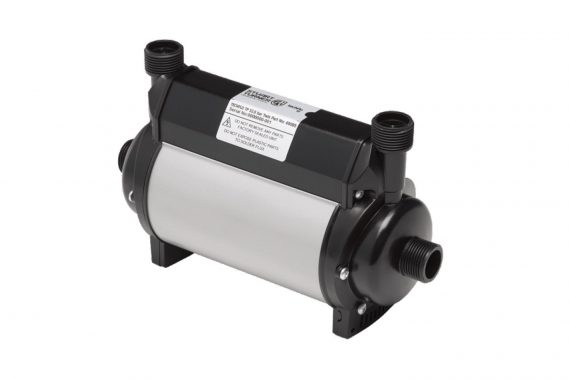

Stuart Turner Techflo TP S1.5 bar Twin – Shower pump
Part Ref: 49084
The TP Standard Twin pumps are designed to boost the incoming hot and cold water supply to an individual shower, bath, shower mixer or mixer tap. Suitable for positive head applications only.
Technical Details
| General | |
| Product code | 49084 |
| Guarantee | 1 year |
| WRAS approval | 1506334 |
| Features | |
| Pump type | Centrifugal |
| Mechanical seal | Nitrile / Carbon / Silicon Carbide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 4 |
| Dry run protection | |
| Performance | |
| Maximum head (closed valve) | 1.5 bar |
| Performance @ 9 l/min | 1.1 bar |
| Performance @ 18 l/min | 0.7 bar |
| Maximum flow | 32 l/min |
| Maximum static inlet pressure | 10 metres |
| Maximum working pressure* | 300 kPa (3 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.8 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections | G ¾ female x 15 mm push-in 200 mm long |
| Motor | |
| Type | Series wound, auto-reset thermal trip |
| Duty rating | Intermittent, (S3) 30 mins on/30 mins off @ 9 l/min*** |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.2 Amps |
| Power consumption | 200 Watts |
| Fuse rating | 3 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IPX2 |
| Length | 250 mm |
| Width | 97 mm |
| Height (excluding hoses) | 152 mm |
| Weight (including fittings) | 2.6 Kg |
* The maximum pressure that can be applied to the pump under any installation conditions.
** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.
*** Both heads pumping 4.5 l/min.
